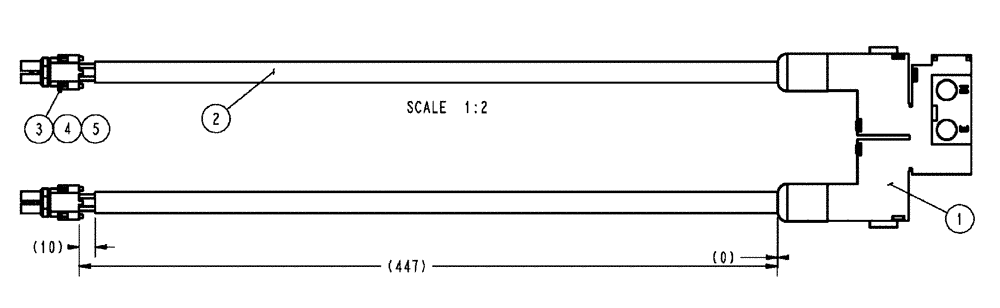

Запчасти Case IH FLX4510 (07-017) - VALVE, AIR WITH HARNESS Pneumatics

1

BN304833

SOLENOID VALVE

Valve, Air, Double Solenoid

1шт.

See Fig. 07-018

1шт.

1a

84269276

SEAL

Pressure, Pilot Valve

1шт.

2

BN2290335

LOOM

Split 1/4" id #1783

3шт.

3

245482C1

ELEC CONNECTOR,2 Pin

plastic 2c plug

2шт.

4

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

socket 18-20awg

4шт.

5

225124C1

SEAL,2 - 2.9 mm2

seal grn 2.8-2 omm

4шт.
