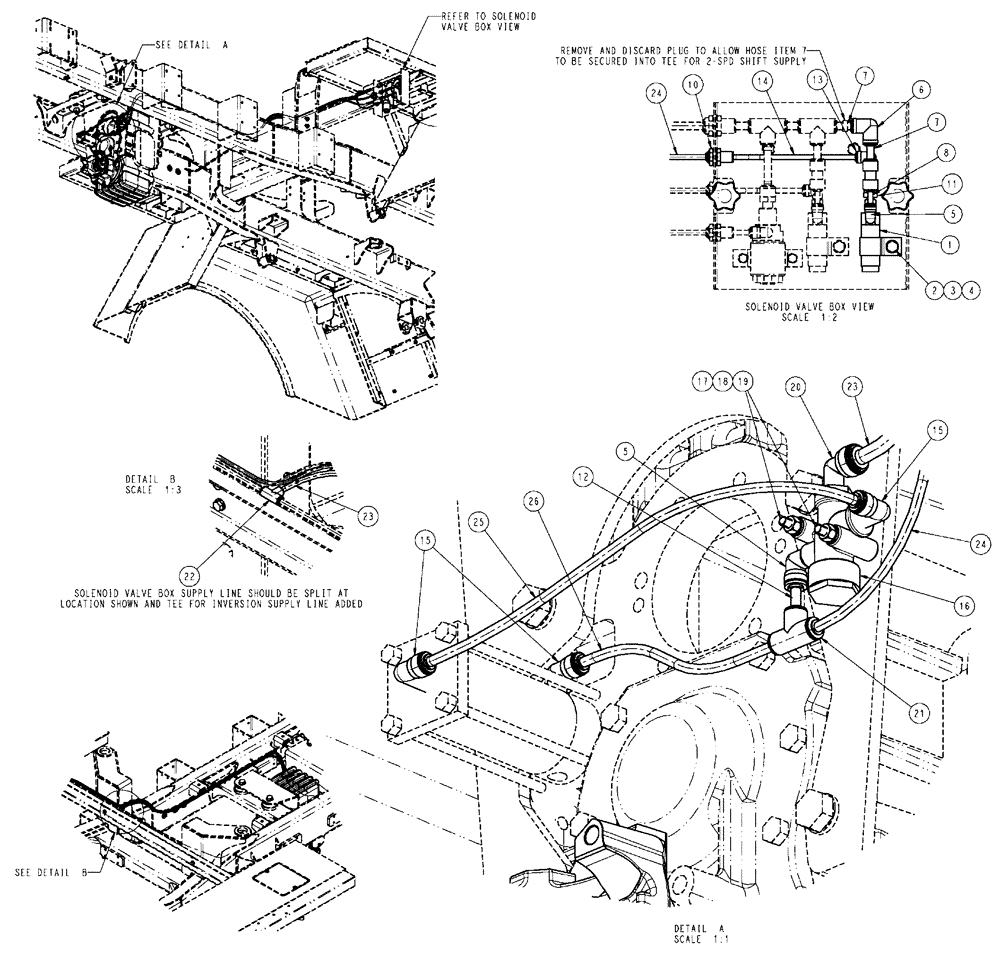

Запчасти Case IH FLX4510 (07-016) - AUX TRANSMISSION PNEUMATIC GROUP “BEFORE SERIAL # 6700” Pneumatics

1

BN324358

SOLENOID VALVE

Air Solenoid

1шт.

2

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

3

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

4

86528579

NUT,M8 x 1.25

1шт.

5

BN2399405

90 ELBOW

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

2шт.

6

BN2399410

HYD CONNECTOR

Tube ULC380

1шт.

7

87266820

TUBE,0.375" DIA

Air, 3/8" x 2.1 ", Black

2шт.

8

BN2292089

AIR INTAKE TUBE

Synflex, 1/4" Bulk

1шт.

9

BN324919

REDUCER

Union 3/8 X 1/4

1шт.

10

BN324869

BULKHEAD

Union 1/4 Tube

1шт.

11

BN2399402

ADAPTER

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

1шт.

12

87266824

TUBE,0.25" DIA

Air, 1/4" x 2", Blue

2шт.

13

BN2399409

90 ELBOW

1/4" OD Tube, Push Lock Fitting

1шт.

14

87266825

TUBE,0.25" DIA

Air 1/4" X 7.5", BLU

1шт.

15

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

3шт.

16

BN324359

HYDRAULIC VALVE

Inversion

1шт.

17

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

18

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

2шт.

19

353308

NUT,M6 x 1.0, Cl 8

2шт.

20

BN2399411

ADAPTER

Elbow, 1/4" MPT x 3/8" OD Tube, Push Lock Fitting

1шт.

21

BN2399408

UNION TEE

Tube UTC140

1шт.

22

BN2399414

UNION TEE

3/8" OD Tube, Push Lock Fitting

1шт.

23

87266946

TUBE,0.375" DIA

Air 3/8" X 67", Black

1шт.

24

BN2393054

TUBE,1/4" X 16' BULK, SAE J844, BLUE

Air, Synflex 1/4" Blue, Bulk

1шт.

Cut 107" from bulk roll

1шт.

25

87266945

TUBE,0.25" DIA

Air, 1/4" x 15", Blue

1шт.

26

87266944

TUBE,0.25" DIA

Air, 1/4" x 9.4", Blue

1шт.
