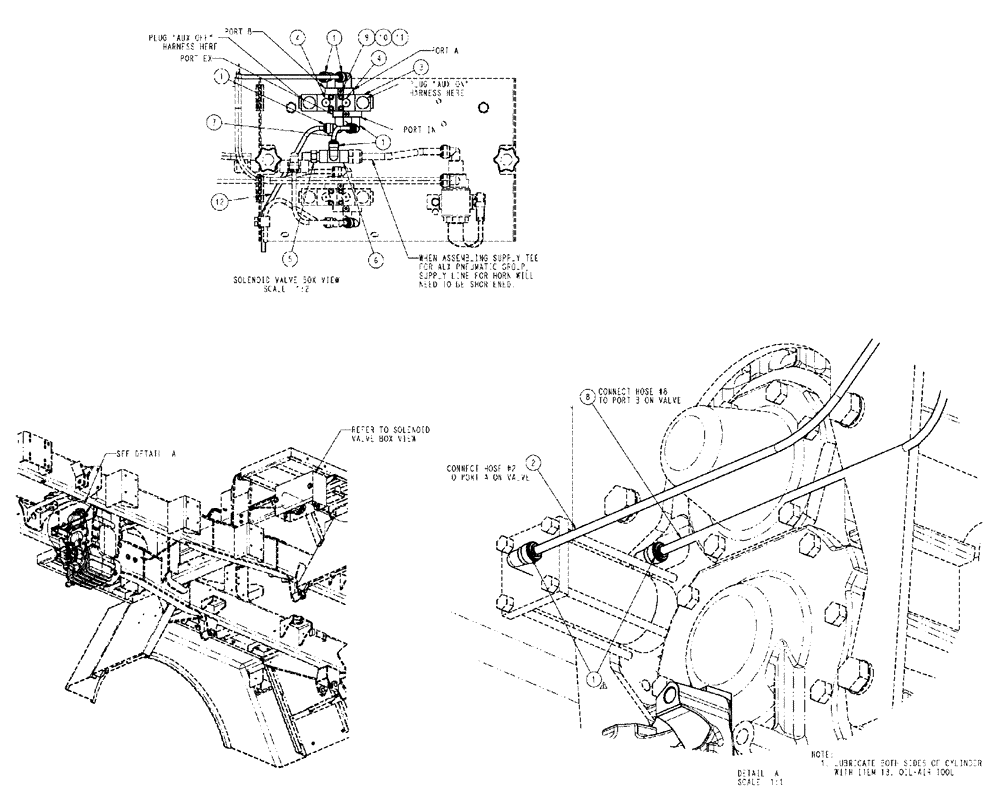

Запчасти Case IH FLX4510 (07-015) - AUX TRANSMISSION PNEUMATIC GROUP “SERIAL # 6700 AND LATER” Pneumatics

1

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

7шт.

2

87269625

TUBE,0.25" DIA x 115" L

Air, 1/4" X 115", Red

1шт.

3

87271289

PNEUMATIC VALVE

Air, With Harness

1шт.

See Fig. 07-017

1шт.

4

BN23041

MUFFLER

Air Valve 1/8" NPT

2шт.

5

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

1шт.

6

217-1161

TEE,1/4"-18 Female

1шт.

7

87269624

TUBE,0.25" DIA x 3.80" L

Air 1/4" X 3.8", Black

1шт.

8

87269626

TUBE,0.25" DIA x 112" L

Air 1/4" x 112", Blue

1шт.

9

840-1535

SCREW,Pan, M5 x 35mm, Cl 4.8

2шт.

10

86625261

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

11

87344030

NUT,Prevailing Torque, M5 x 0.8, CL 8, DOR

2шт.

12

87269632

TUBE,0.25" DIA x 30" L

Air 1/4" x 30", Yellow

1шт.

13

NS

NOT SERVICED

Air Tool

1шт.
