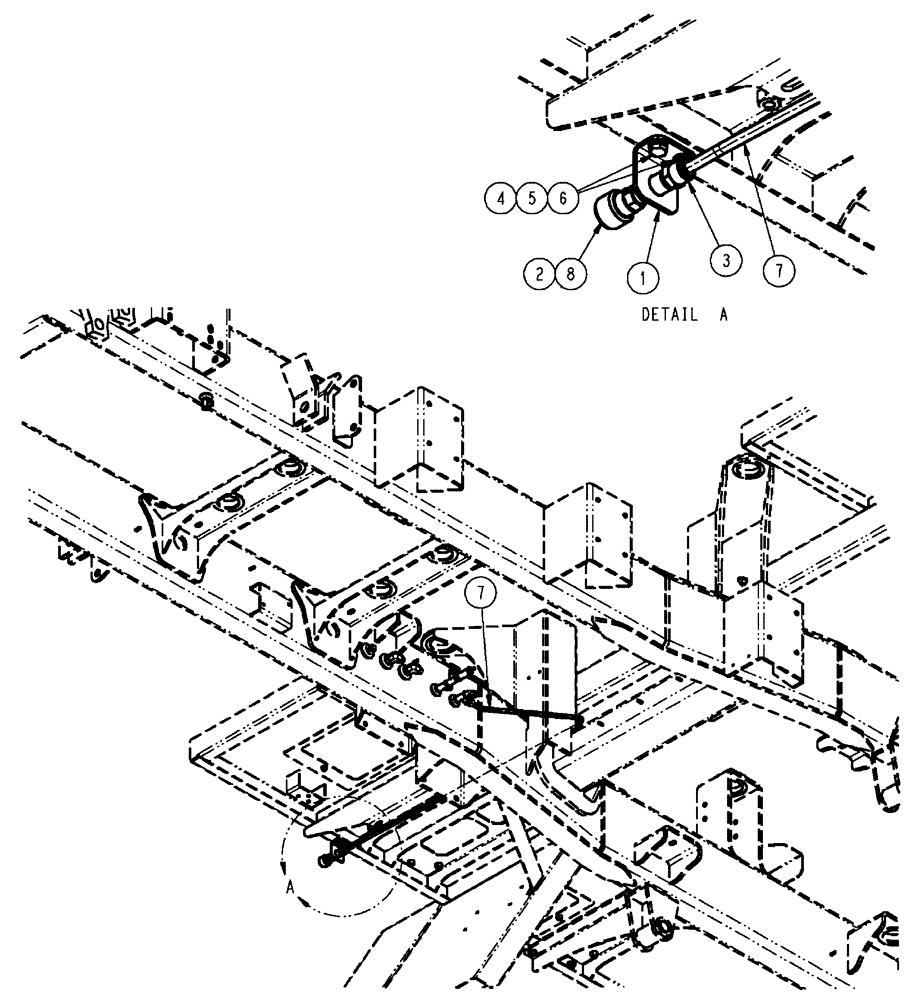

Запчасти Case IH FLX4510 (07-014) - AIR REMOTE COUPLER GROUP Pneumatics

1

BN324300

PLATE

Remote Air Coupler

1шт.

2

BN2393326

COUPLING

B32

1шт.

3

BN2399403

ADAPTER

1/4" MPT x 3/8" OD Tube, Push Lock Fitting

1шт.

4

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

5

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

6

86528579

NUT,M8 x 1.25

2шт.

7

87266799

TUBE,0.375" DIA

3/8" x 62", Black

1шт.

8

87267960

COVER

dust, air chuck

1шт.
