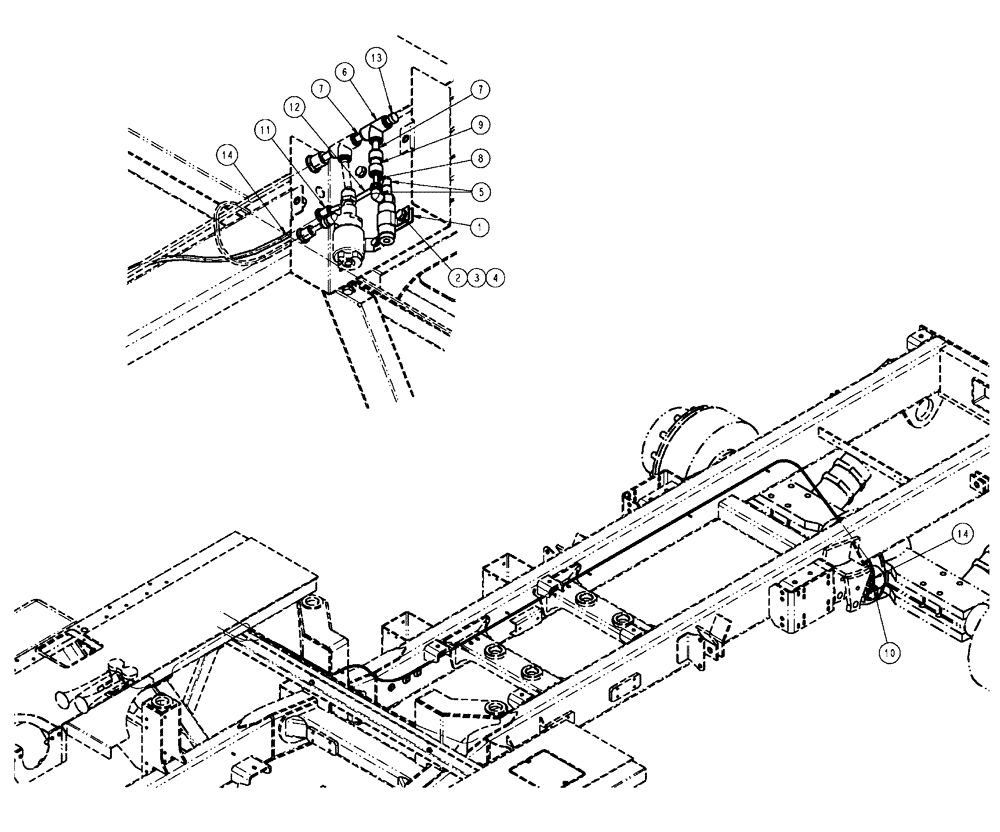

Запчасти Case IH FLX4510 (07-011) - SHIFT GROUP, 2-SPEED, AIR "BEFORE SERIAL # 6700" Pneumatics

1

BN324358

SOLENOID VALVE

Air

1шт.

2

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

3

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

4

86528579

NUT,M8 x 1.25

1шт.

5

BN2399405

90 ELBOW

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

2шт.

6

BN2399414

UNION TEE

3/8" OD Tube, Push Lock Fitting

1шт.

7

87266820

TUBE,0.375" DIA

Air, 3/8" x 2.1 ", Black

2шт.

8

BN2292089

AIR INTAKE TUBE

Synflex, 1/4" Bulk

1шт.

9

BN324919

REDUCER

Union 3/8 X 1/4

1шт.

10

BN2399401

ADAPTER

Male, 1/4" Tube

1шт.

11

BN324869

BULKHEAD

Union 1/4 Tube

1шт.

12

87266823

TUBE,0.25" DIA

Air 1/4" X 5", GRN

1шт.

13

87266815

PLUG

Synflex Connection, 3/8"

1шт.

14

87266830

TUBE,0.25" DIA

Air 1/4" x 214", Green

1шт.
