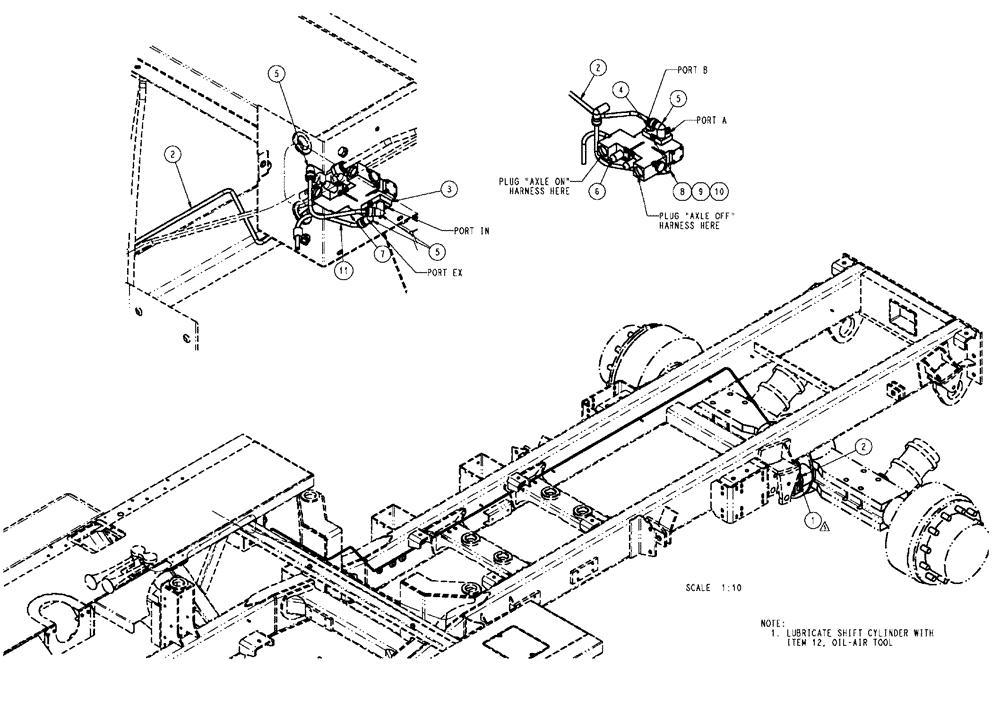

Запчасти Case IH FLX4510 (07-010) - SHIFT GROUP, 2-SPEED, AIR "SERIAL # 6700 AND LATER" Pneumatics

1

BN2399401

ADAPTER

Male, 1/4" Tube

1шт.

2

87266830

TUBE,0.25" DIA

Air 1/4" x 214", Green

1шт.

3

87271289

PNEUMATIC VALVE

Air, With Harness

1шт.

See Fig. 07-017

1шт.

4

9617020

PLUG,1/4" - 18 x 0.48"

1шт.

5

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

4шт.

6

BN23041

MUFFLER

Air Valve 1/8" NPT

2шт.

7

BN2292089

AIR INTAKE TUBE

Synflex, 1/4" Bulk

1шт.

Cut 8.5" from bulk roll

1шт.

8

840-1535

SCREW,Pan, M5 x 35mm, Cl 4.8

2шт.

9

86625261

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

10

87344030

NUT,Prevailing Torque, M5 x 0.8, CL 8, DOR

2шт.

11

87269627

TUBE,0.25" DIA x 7.25" L

Air 1/4" x 7.25", Yellow

1шт.

12

NS

NOT SERVICED

Air Tool

1шт.
