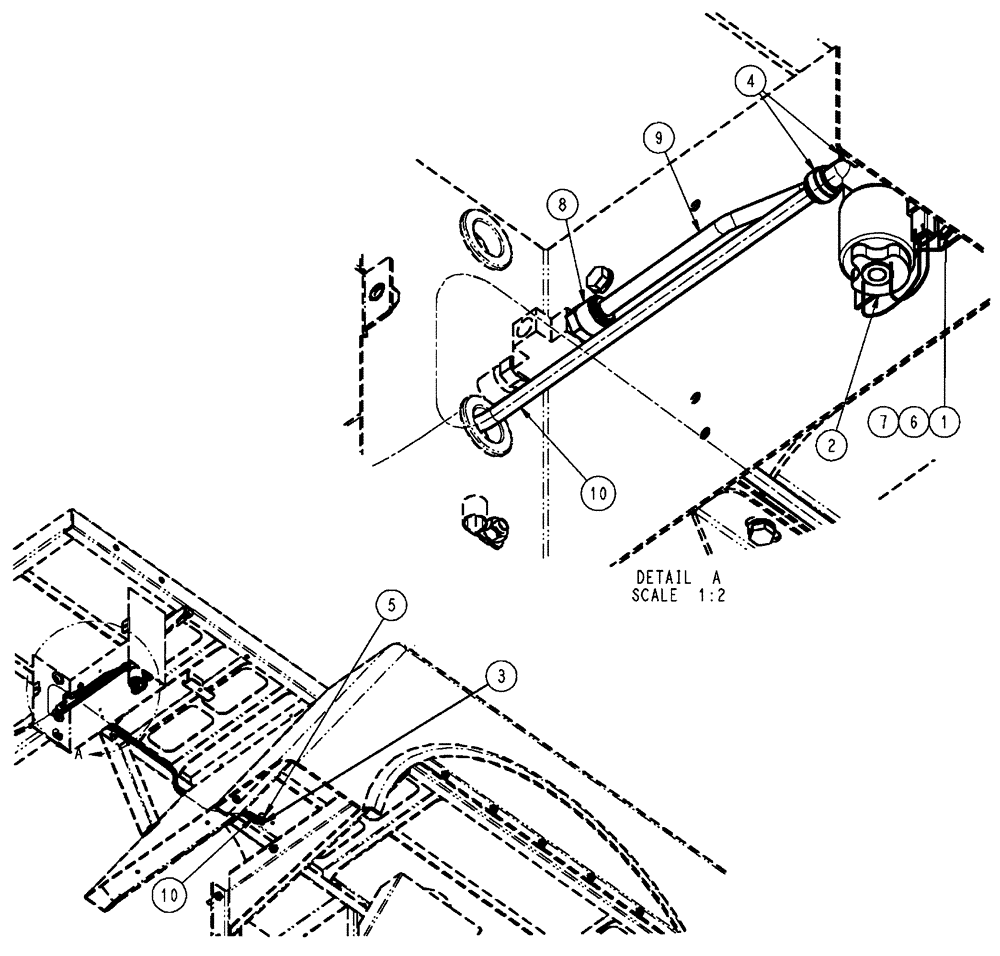

Запчасти Case IH FLX4510 (07-009) - AIR HORN GROUP Pneumatics

1

87267810

SOLENOID VALVE

Air (RWK)

1шт.

2

353308

NUT,M6 x 1.0, Cl 8

2шт.

3

BN2399413

HYD CONNECTOR

Tube ME380180

1шт.

4

BN2399411

ADAPTER

Elbow, 1/4" MPT x 3/8" OD Tube, Push Lock Fitting

2шт.

5

87268289

HORN

Fultone, Black

1шт.

6

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

7

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

8

BN2399403

ADAPTER

1/4" MPT x 3/8" OD Tube, Push Lock Fitting

1шт.

9

87269622

TUBE,0.375" DIA x 8.75" L

Air 3/8" x 8.75", Black

1шт.

10

87269623

TUBE,0.375" DIA x 54" L

Air 3/8" x 54", Black

1шт.
