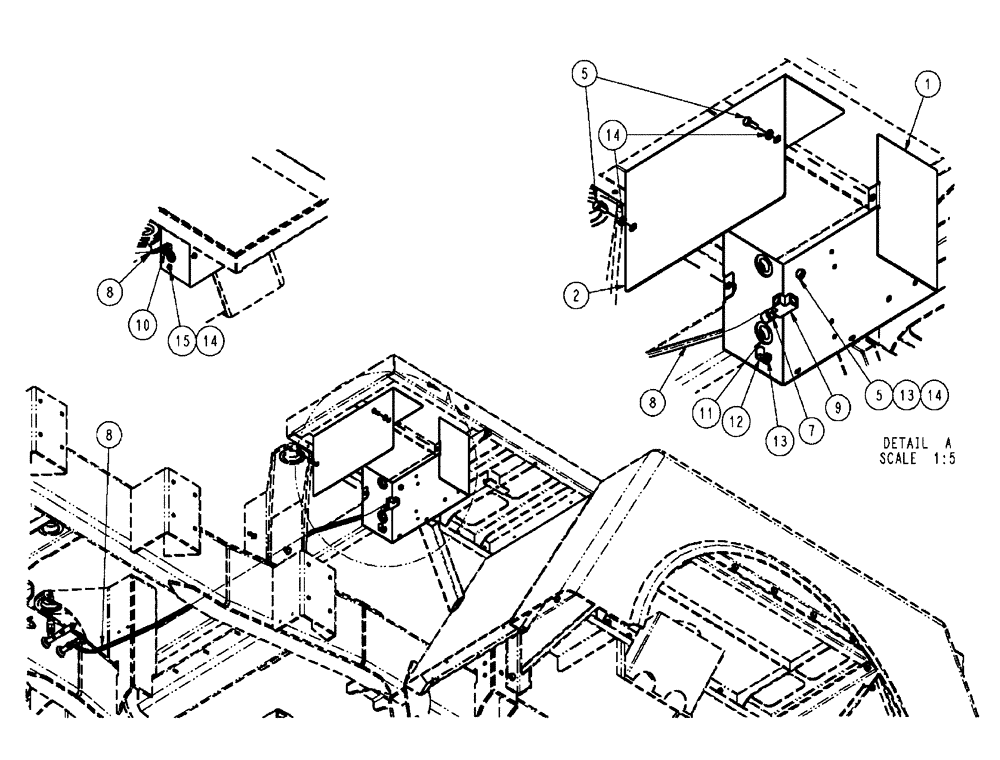

Запчасти Case IH FLX4510 (07-008) - VALVE BOX/SUPPLY GROUP Pneumatics

1

87269635

BOX

Enclosure, Air Solenoid

1шт.

2

87269636

COVER

SOL VLV Enclosure

1шт.

4

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

5

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

6

86528579

NUT,M8 x 1.25

2шт.

7

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

1шт.

8

87266826

TUBE,0.375" DIA

Air, 3/8" x 73", Black

1шт.

9

217-1161

TEE,1/4"-18 Female

1шт.

10

BN2399403

ADAPTER

1/4" MPT x 3/8" OD Tube, Push Lock Fitting

1шт.

11

BN2290753

GROMMET

2870 (7/8" Hole)

2шт.

12

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

13

86528579

NUT,M8 x 1.25

3шт.

14

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

7шт.

15

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.
