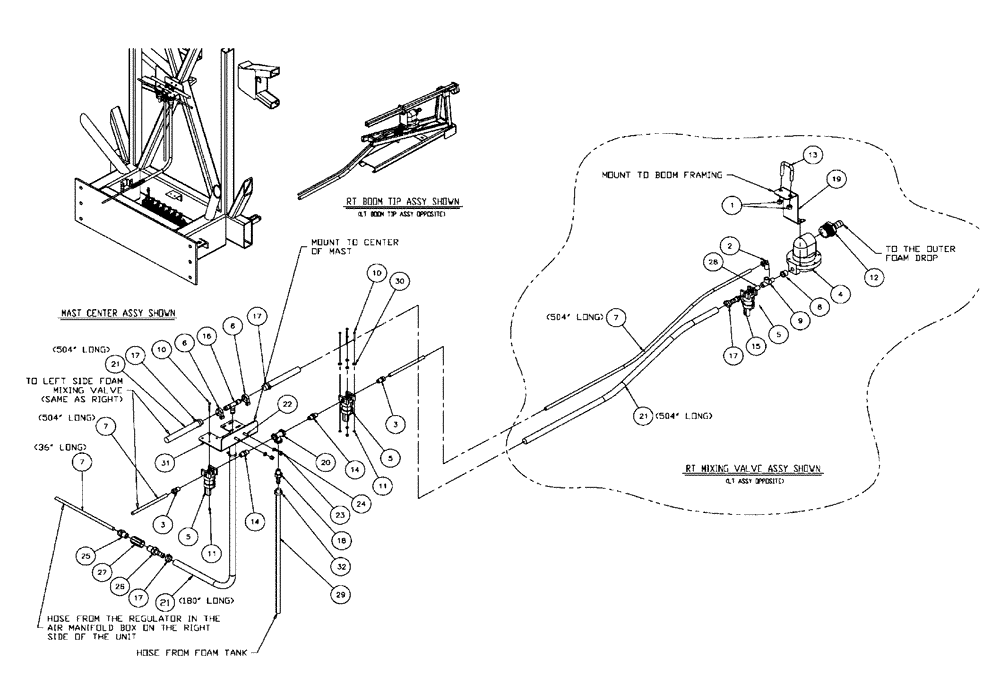

Запчасти Case IH FLX4510 (10-014) - FOAM DELIVERY GROUP, 70’ BOOM Options

1

88902

NUT,3/8"-16

4шт.

2

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

2шт.

3

BN2399403

ADAPTER

1/4" MPT x 3/8" OD Tube, Push Lock Fitting

2шт.

4

BN307636

CHAMBER

Foam Mixing

2шт.

5

BN307938

VALVE

Solenoid, 1/4 NPT

4шт.

6

BN309265

CABLE

Tie

2шт.

7

BN311114

HOSE,0.38" ID x 45.00'

Synflex

2шт.

8

BN313188

BUSHING

3/8 NPT 1/4 NPT, SS

2шт.

9

BN313189

TEE

4-4-4, NPT, SS

2шт.

10

BN317051

BOLT

6-32 X 1.25"

8шт.

11

BN317053

LOCK NUT

6-32 nylon lock

8шт.

12

BN319562

FITTING

Barb, 1.25 NPT X 3/4 HS

2шт.

13

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

BOLT "U" Square Bend 3/8"-16 x 1.31 wide x 2.00 Deep

2шт.

14

86986808

NIPPLE

1/4" Short, Poly

2шт.

15

BN324008

FITTING

1/4" NPT x 1/2" Hose Barb, Poly

2шт.

16

BN324009

TEE

All 1/2" HB, Poly

1шт.

17

BN324022

HOSE CLAMP

#8, Stainless Steel

6шт.

18

86986810

FITTING

Hosebarb, 3/8" X 1/4" NPT

1шт.

19

343091A1

BRACKET, SUPPORTING

mount, foam mix valve, 70'

2шт.

20

86986807

TEE

1/4" Poly

1шт.

21

BN54239

HOSE,12.7mm ID x 3048mm L

Black-1/2 EPDM, Discharge

99шт.

22

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

23

353308

NUT,M6 x 1.0, Cl 8

2шт.

24

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

25

BN2399412

ADAPTER

Tube MC38038

1шт.

26

BN323125

FITTING

Hosebarb, 3/8" NPT X 1/2" HS

1шт.

27

343552A1

COUPLING,3/8" Poly Pipe Coupling

3/8" poly

1шт.

28

BN322427

VENTURI

Foamer Assembly

2шт.

29

BN75913

TUBE

3/8 EVA

27шт.

30

87529123

WASHER,0.16" ID x 0.38" OD x 0.05" Thk

0.156 x 0.375 x 0.049 CST DOR

4шт.

31

87266013

PLATE

Solenoid Valve Mount

1шт.

32

BN76094

HOSE CLAMP

SS #M4

1шт.

87265139

WIRE HARNESS

RH Liquid Foamer

1шт.

Not Shown

1шт.
