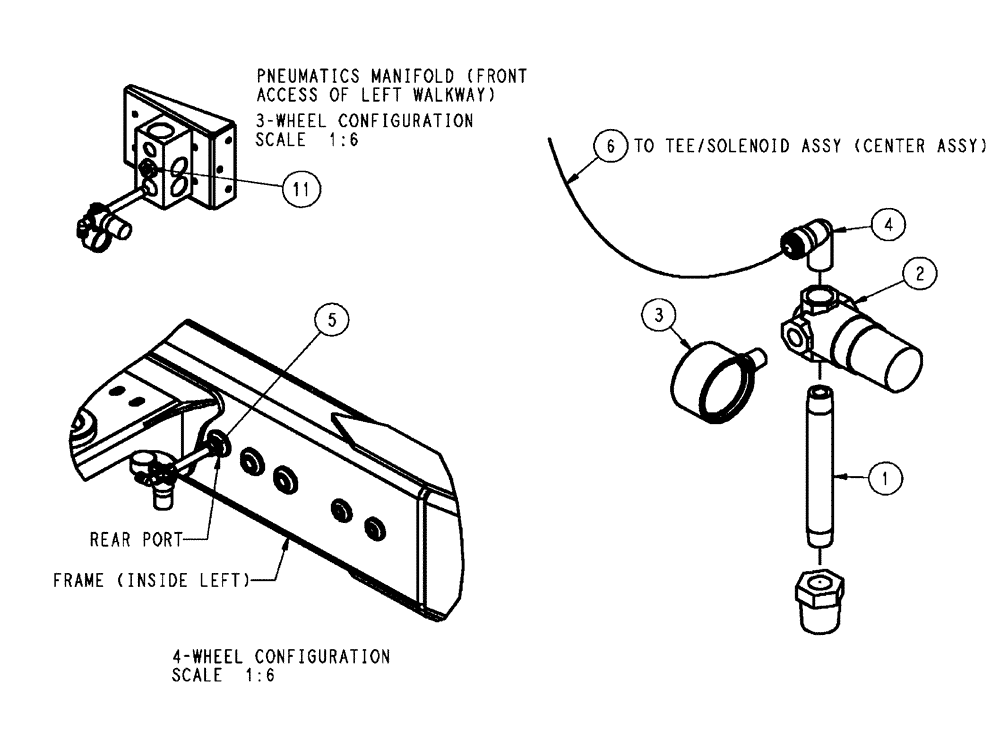

Запчасти Case IH FLX4510 (10-012) - FOAM MARKER, BARE CHASSIS Options

1

BN73006

LUBE NIPPLE

LUBRICATOR 1/4" NPT X 4.0 SS

1шт.

2

87388151

REGULATOR

Air Pressure

1шт.

3

86986803

GAUGE

0-30 PSI, 1/8" NPT

1шт.

4

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

1шт.

5

BN0281508

BUSHING

1/2 x 1/4 PTR-S

1шт.

6

BN324940

TUBE

Air 3/8" x 240"

1шт.

7

BN73731

PLUG,1-1/2" Male NPT, Poly

1 1/2" Poly Pipe

1шт.

8

NSS

NOT SOLD SEPARAT

Tank, Foamer Group 438A

1шт.

See Fig. 10-013

1шт.

9

NSS

NOT SOLD SEPARAT

Group, Foam Delivery, 70' Boom

1шт.

See Fig. 10-014

1шт.

10

NSS

NOT SOLD SEPARAT

Foamer Electrical Group

1шт.

See Fig. 08-007

1шт.

11

BN323191

FITTING

ADT 4 NPT x 8 ORB

1шт.
