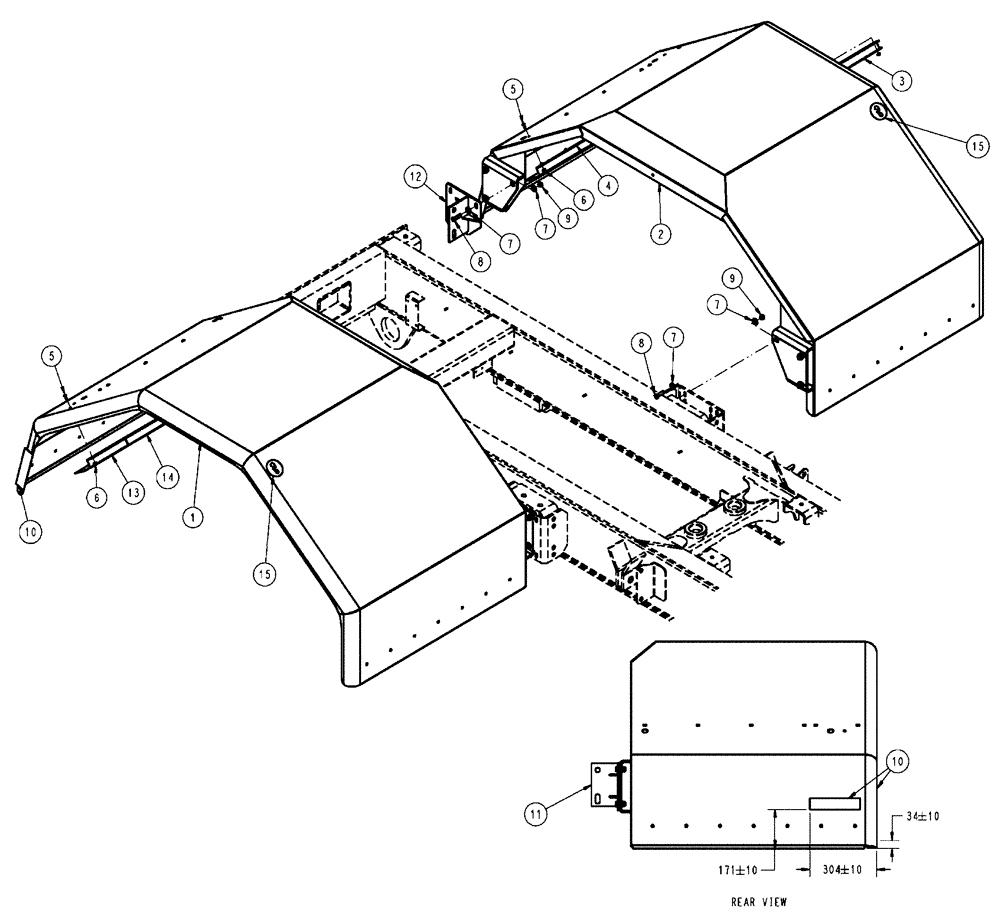

Запчасти Case IH FLX4510 (10-003) - REAR FENDER GROUP, FLX4010 & FLX4510 Options

1

87266856

FENDER

CS, 73"

1шт.

2

87266857

FENDER

RS, 73"

1шт.

3

87267037

COVER

Wire Harness, Short

1шт.

4

87267038

COVER

Wire Harness, Long

1шт.

5

BN50205

BOLT

1/4"-20 x .625 TH, SS, Philips

24шт.

6

BN50052

LOCK NUT,1/4"-20, USR, SS

12шт.

7

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

24шт.

8

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

12шт.

9

100038

NUT,M12 x 1.75, Cl 8

12шт.

10

311863A1

REFLECTOR

Retroreflective Red

4шт.

11

BN311484

MOUNTING PLATE

Rear Fender, CS

1шт.

12

BN311485

MOUNTING PLATE

Rear Fender, RS

1шт.

13

87267039

COVER

Wire Harness, Short

1шт.

14

87267040

COVER

Wire Harness, Long

1шт.

15

84432904

DECAL

no step - Russian

2шт.
