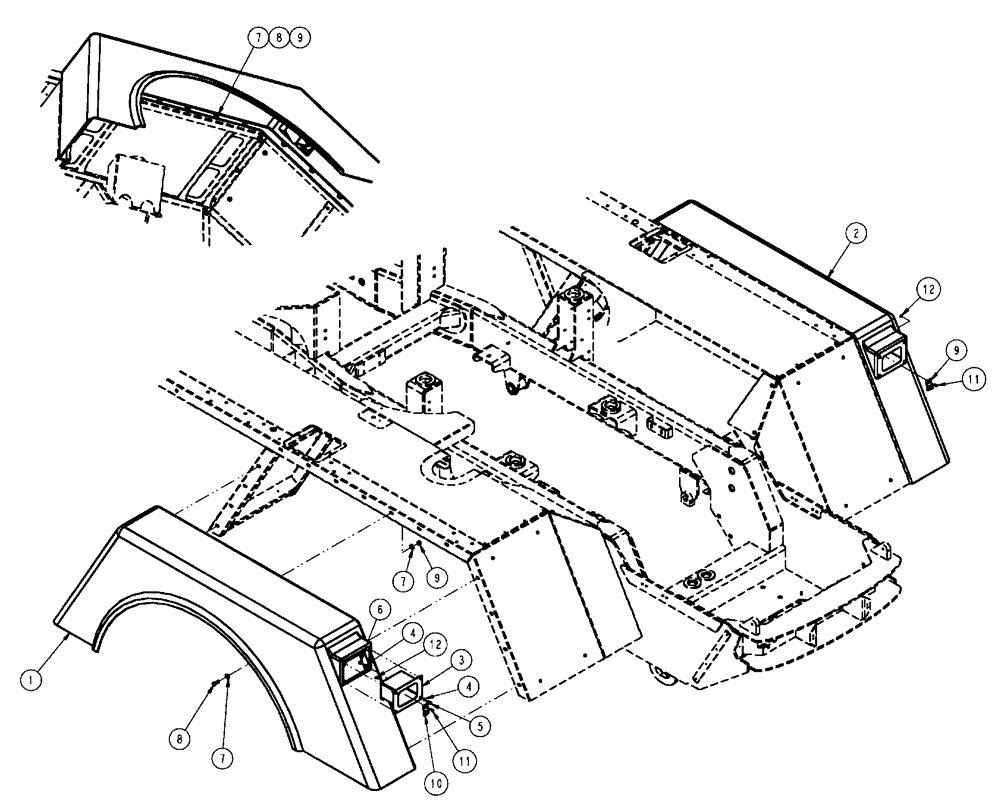

Запчасти Case IH FLX4510 (04-016) - FENDER GROUP, FRONT Frame & Suspension

1

86986680

FENDER

Front, CS

1шт.

2

86986681

FENDER

Front, RS

1шт.

3

86986682

MOUNTING PLATE

Park/Turn LT

2шт.

4

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

16шт.

5

120100

BOLT,M6 x 20mm, Cl 8.8

8шт.

6

353308

NUT,M6 x 1.0, Cl 8

8шт.

7

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

60шт.

8

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

30шт.

9

100037

LOCK NUT,M10 x 1.5, Cl 8

30шт.

10

87267088

RETAINER

Assembly, Deutsch RH

1шт.

11

BN52348

BOLT,Phil Pan Hd, #10 - 32 x 1/2", Stainless

10-32 X 1/2 SSPH, Phillip

2шт.

12

225-14210

NUT,#10-32

2шт.

13

87267087

RETAINER

Assembly, Deutsch LH

1шт.
