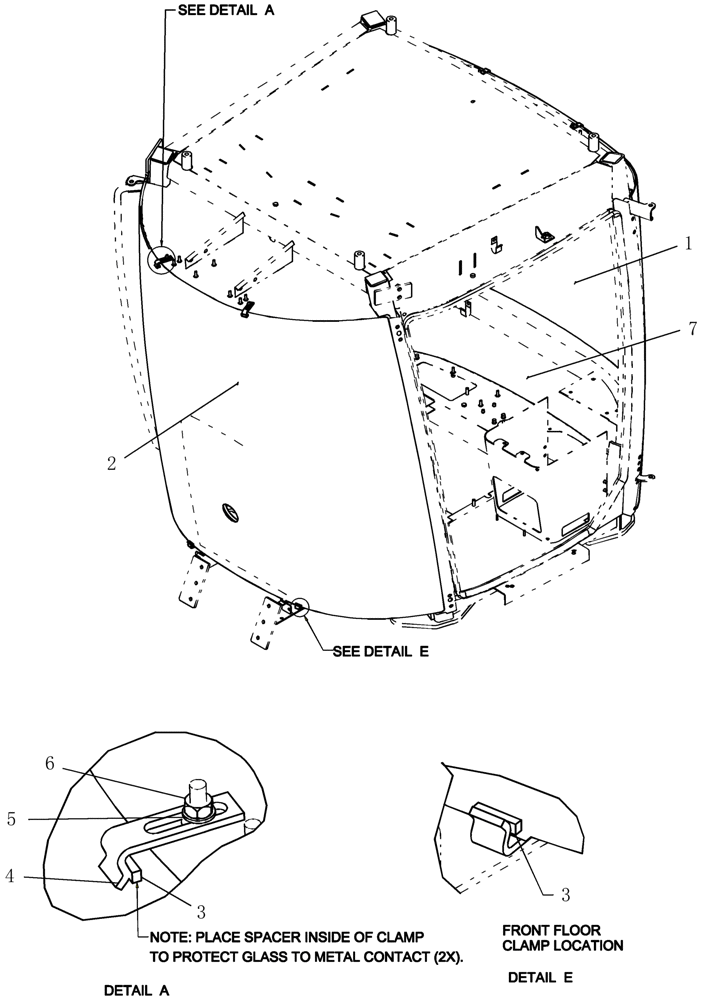

Запчасти Case IH FLX4510 (01-022[04]) - GLASS MOUNTING GROUP (10) - CAB

1

181240A2

GLASS

Rear

1шт.

2

410872A1

WINDSHIELD

Laminated

1шт.

3

87543673

SPACER

Glass Bonded

52шт.

4

117707A3

CLAMP

Window

9шт.

5

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

6

43362

NUT,M8 x 1.25, Cl 10

8шт.

7

259462A1

FOAM INSULATION

Barrier

1шт.

8

87309622

FOAM INSULATION

Barrier

1шт.

9

70-6509T1

SEALANT

Sikaflex-221 Black Polyurethane

1шт.

10

87337003

ADHESIVE STRIP

Sika

1шт.

11

87324751

ACTIVATOR

Sika

1шт.
