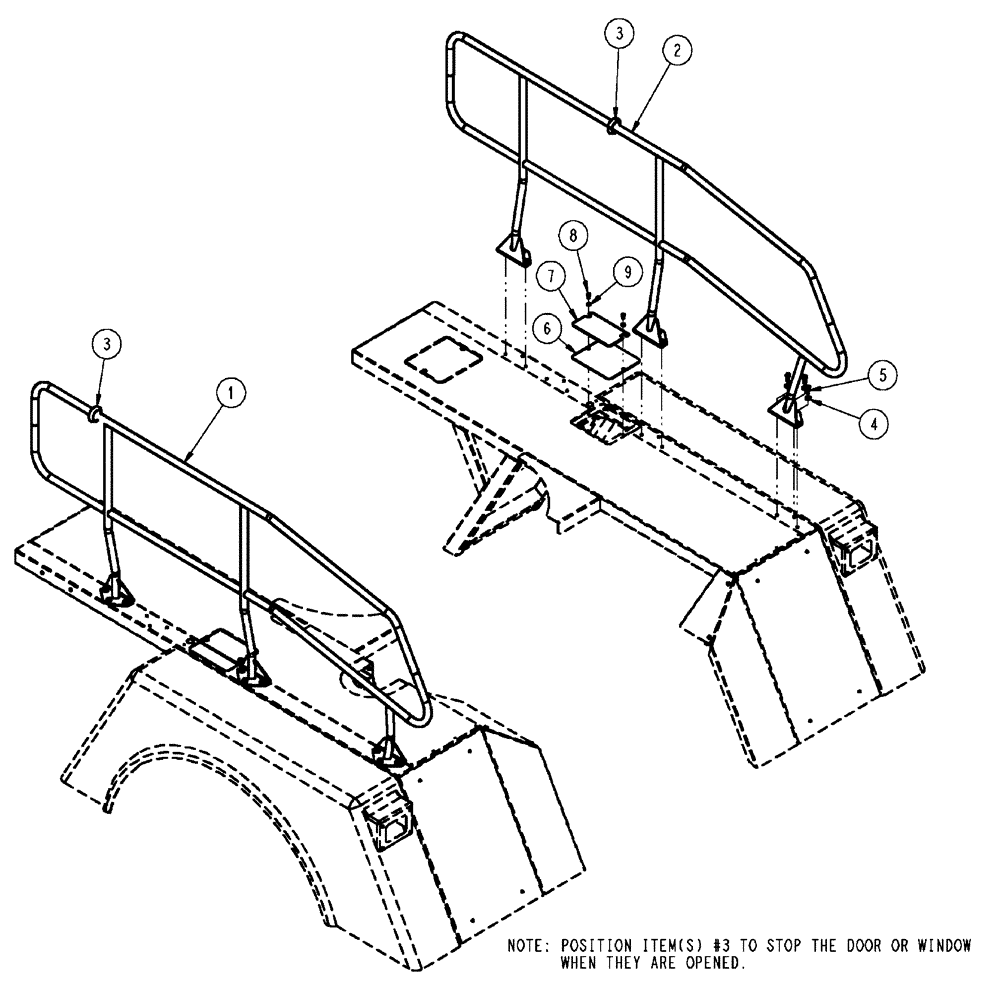

Запчасти Case IH FLX4510 (04-010) - HANDRAIL GROUP, FLEXAIR Frame & Suspension

1

87267447

HANDRAIL

Flexair CS

1шт.

2

87267446

HANDRAIL

Flexair RS

1шт.

3

87267174

BUMPER

Tubular Door Stop

2шт.

4

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

18шт.

5

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

18шт.

6

344098A1

COVER

Cradle Access

2шт.

7

344358A1

MAT

Cradle Cover

2шт.

8

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

9

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.
