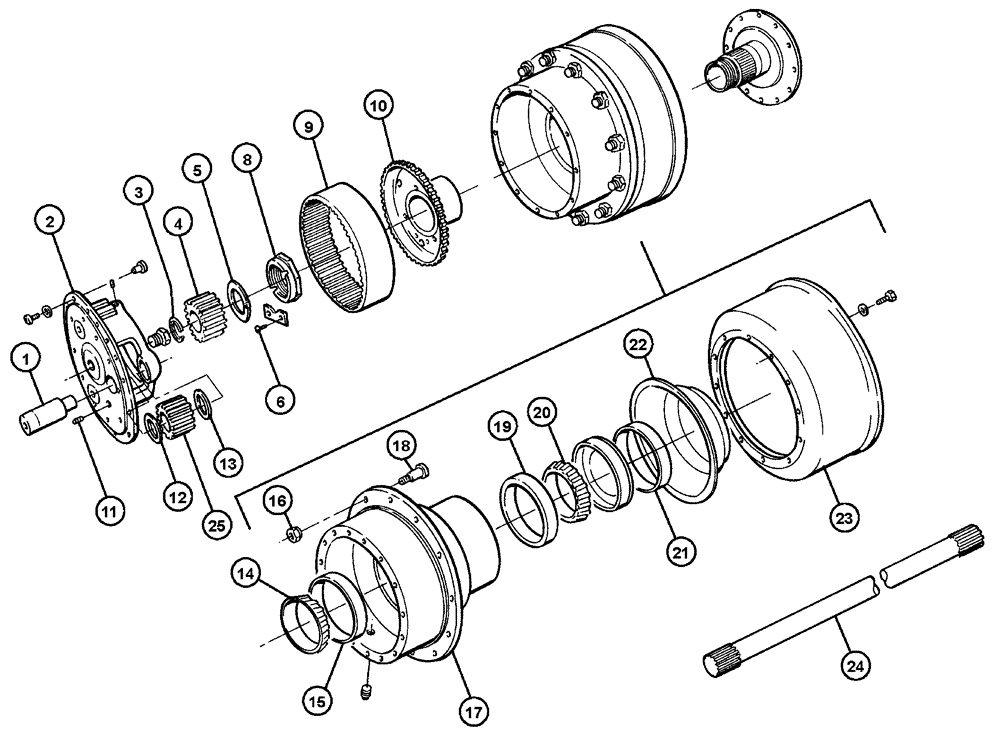

Запчасти Case IH FLX4510 (04-009) - REAR AXLE HUB Frame & Suspension

BN2407953

SHIFTING UNIT

Air, Rear Axle, 2 Speed

1шт.

87271282

PLUG

Intern hex, M12 X 1.5

1шт.

1

BN2390129-030

SHAFT

Planetary, Pinion

6шт.

2

87266617

PINION

Planetary, Assembly 30B (2-Speed), Includes Ref 1, 12, 13, and 25

2шт.

3

BN2390129-038

SNAP RING

Axle Shaft Retaining

2шт.

4

87266618

PLANETARY GEAR

Sun 17T

2шт.

5

BN2390129-037

WASHER

Flange Tm Sun Gear

2шт.

6

87271281

SCREW

Capscrew, Wheel Bearing

2шт.

8

87266619

BEARING LOCK NUT

Wheel Bearing

2шт.

9

87266620

PLANETARY GEAR

ring 55T

2шт.

10

87266621

RING GEAR

Hub, Planetary

2шт.

11

BN2390129-035

PLUG

Magnetic, 3/4" NPT

2шт.

12

BN2390129-033

THRUST WASHER

Outer

6шт.

13

BN2390129-015

THRUST WASHER

Inner Pinion

6шт.

14

BN2390129-011

ROLLER BEARING,117.47mm ID x 31.75mm W

Hub Outer, Timkin 68462

2шт.

15

BN2390129-012

BEARING CUP

Hub Outer

2шт.

16

BN315229

WHEEL NUT

Flange, Wheel, 22 mm

24шт.

17

87266628

HUB

And Cup Assembly 30 Bolt

2шт.

17

BN2390129-036

HUB CARRIER

16 Bolt, With Race

2шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

18

87266627

BOLT

Stud Wheel 22 mm

24шт.

19

BN2390129-014

BEARING CUP

Cup, Hub Inner

2шт.

20

BN2390129-013

ROLLER BEARING

Hub Inner

2шт.

21

BN2394941

SEAL

Oil, Wheel Bearing

2шт.

22

BN2390129-043

SLINGER

Oil 3905-A-53

2шт.

23

BN2390129-021

BRAKE DRUM

Axle

2шт.

24

BN2390129-005

HALF SHAFT

Axle - Short x 49.83" (Curbside)

1шт.

24

BN2390129-006

HALF SHAFT

Axle - Long x 53.71" (Roadside)

2шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

25

87266626

PLANETARY GEAR

Pinion 19T

6шт.

9635076

BOLT

Brake Drum To Hub, 3/4 - 10 X 2 GR 8 (Shown to Right of Ref. 23)

12шт.

9706679

WASHER,0.8" ID x 1.25" OD x 0.14" Thk

Shown to Right of Ref. 23

12шт.
