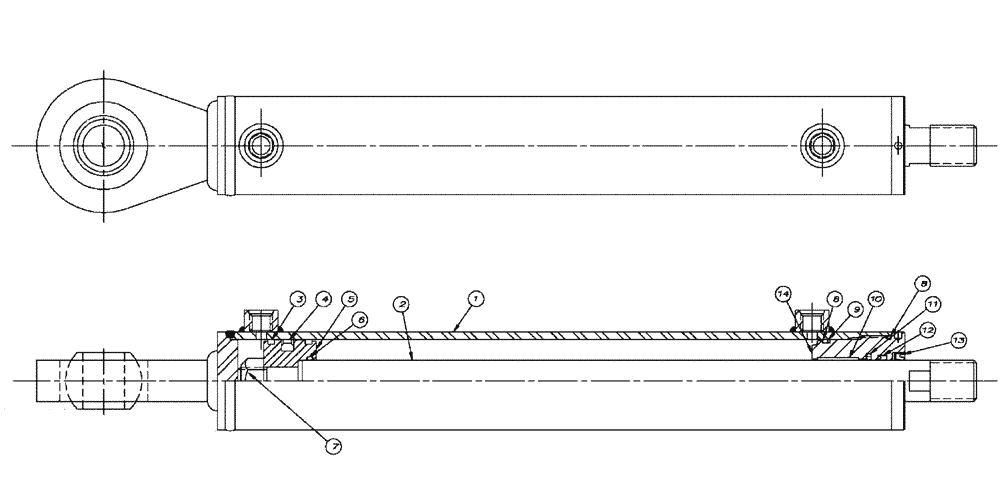

Запчасти Case IH FLX4510 (06-009) - STEERING CYLINDER (07) - HYDRAULICS

0

87267313

CYLINDER,Double Acting, 25.4mm Rod, 304.8mm Stroke

Hydraulic, 2.00 x 12 x 1.00, Complete

1шт.

1

86986230

CASE

Assembly

1шт.

2

87267175

ROD

1шт.

3

86986223

WEAR RING

2шт.

4

86986216

SEAL

Piston

1шт.

5

86986226

PISTON

1шт.

6

14457880

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

7

86986220

LOCK NUT

1шт.

8

238-5133

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

2шт.

9

84251311

WASHER

Backup

1шт.

10

86986217

WEAR RING

1шт.

11

86986219

SEAL

Step

1шт.

12

86986218

SEAL

U-Cup

1шт.

13

86986215

WIPER

1шт.

14

86986227

HEAD

1шт.

15

342216A1

SEAL KIT

1шт.

Consists of Refs. 3, 4, 6, 8, 9, 10, 11, 12, 13

1шт.
