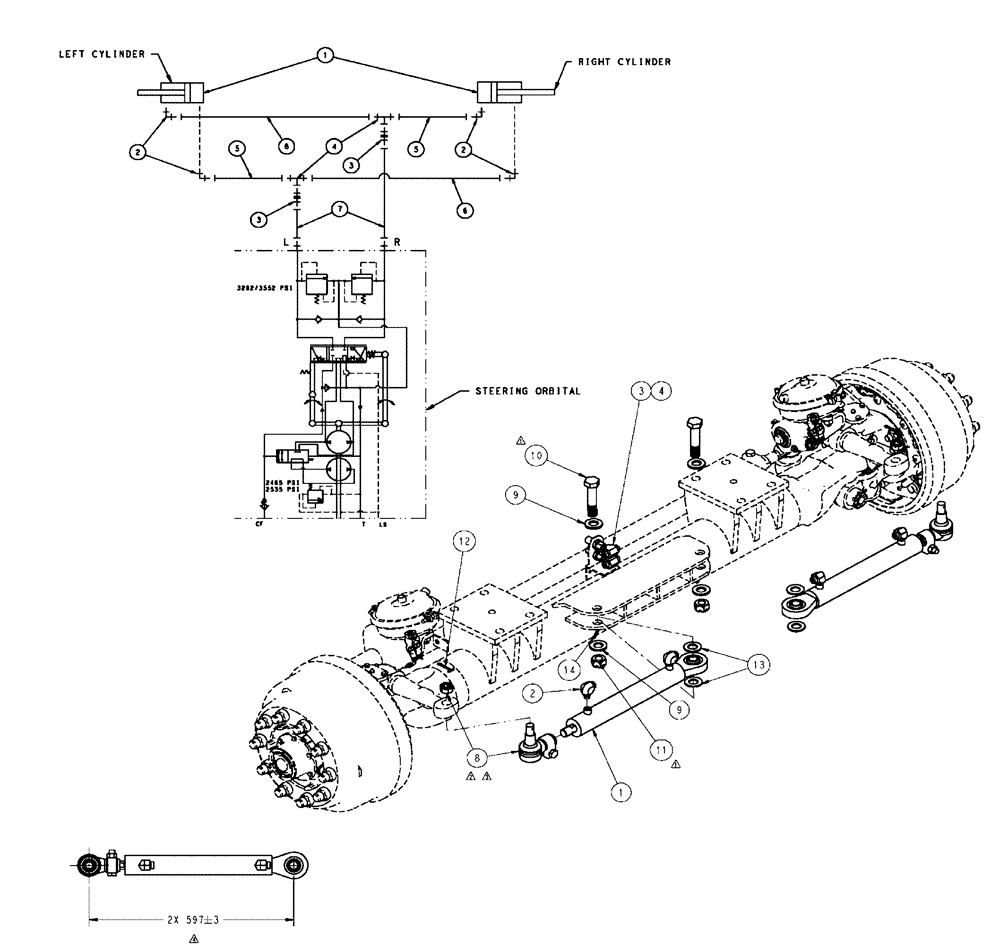

Запчасти Case IH FLX4510 (06-008) - STEERING CYLINDER GROUP (07) - HYDRAULICS

1

NSS

NOT SOLD SEPARAT

Cylinder, Hydraulic 2.00 X 12 X 1.00

2шт.

See Fig. 06-009

1шт.

2

BN302557

FITTING

8MOR-6MB x 90

4шт.

3

BN309493

BULKHEAD

8MOR, 8MOR

2шт.

4

BN309492

TEE

8MOR, 8MOR, 8FOR

2шт.

5

BN309661

HOSE

Assembly, 8 X 15

2шт.

6

BN309662

HOSE

Assembly, 8 X 26

2шт.

7

BN313838

HOSE

Assembly, 8 X 72"

2шт.

8

87266552

REPAIR KIT

End, Female 1-16 Thread

2шт.

9

496-21106

WASHER,1 1/16" x 2" x .209", HDN

4шт.

10

87525370

BOLT

1-8 X 4.5, HH, G5 DOR W/Hole

2шт.

11

87343900

SLOTTED NUT

Hex, 1"-8, G5

2шт.

12

733-4040

COTTER PIN,M4 x 40

2шт.

13

86632592

WASHER,1.06" ID x 2" OD x 0.13" Thk

4шт.

14

BN50601

PIN, SPLIT (COTTER)

PIN, COTTER 3/16 X 2"

2шт.
