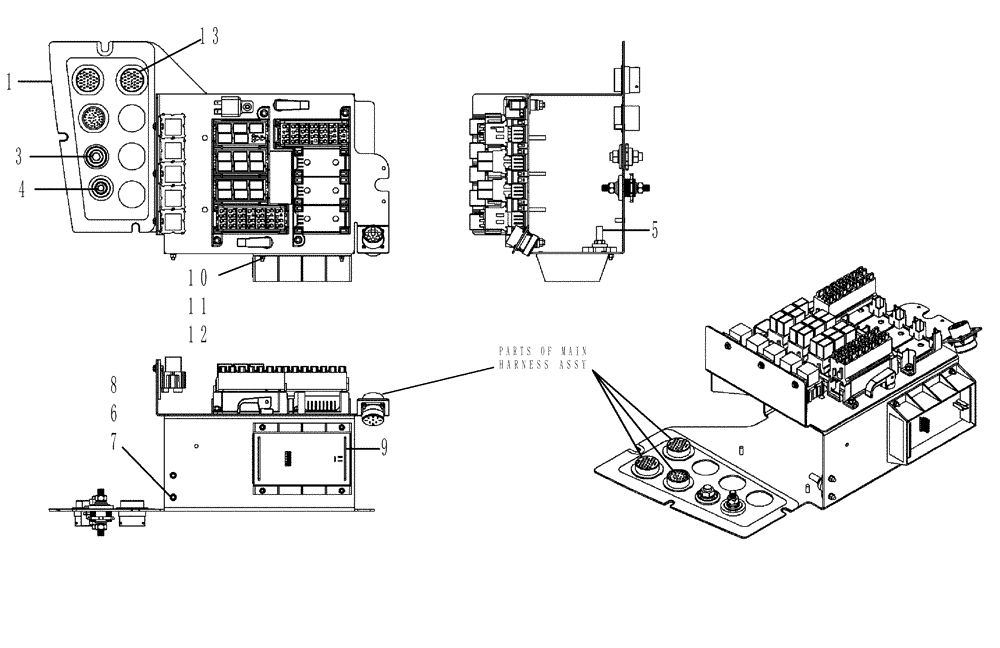

Запчасти Case IH FLX4510 (08-011) - MODULE BFC MAIN ELECTRONIC ASSEMBLY (06) - ELECTRICAL

0

87265757

MODULE

BFC Main Electronics Assembly

1шт.

1

416105A1

1шт.

2

87265756

MODULE

BFC Electronics Assembly

1шт.

See Fig. 08-012

1шт.

3

311430A1

BLOCK

Junction Assy.

1шт.

4

190158A1

BLOCK

Junction Assy.

1шт.

5

20-1451T1

BLOCK

Junction

1шт.

6

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

2шт.

7

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

8

824-1405

NUT,M5, Cl 5

2шт.

9

296674A3

FLASHER UNIT

1шт.

10

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4шт.

11

892-11004

LOCK WASHER,M4

5шт.

12

824-1404

NUT,M4, Cl 5

4шт.

13

394610A1

DECAL

Sprayer Main Electronics Assy

1шт.
