Запчасти Case IH FLX4510 (08-001) - ELECTRICAL GROUP, CABLE (06) - ELECTRICAL

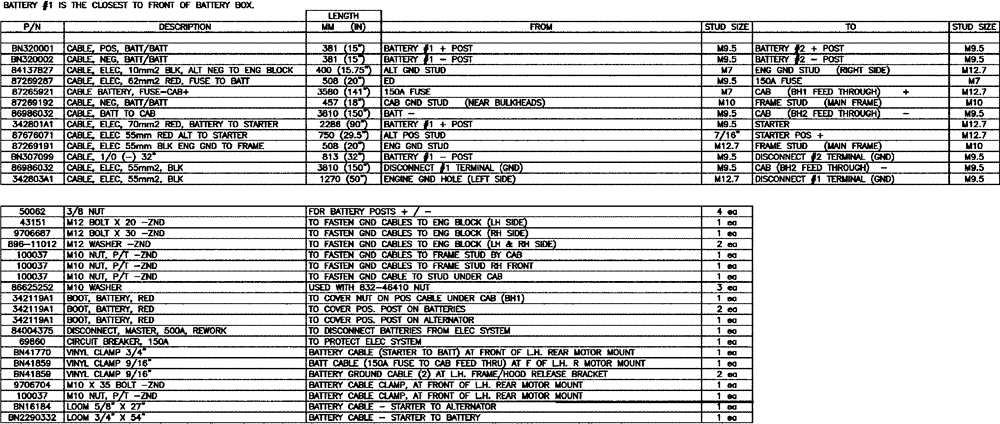

Схема запчастей Case IH FLX4510 - (08-001) - ELECTRICAL GROUP, CABLE (06) - ELECTRICAL
21

Артикул

Название

Примечание

Количество

342119A1

BOOT

Battery, Red

4шт.

87269287

CABLE

Battery To Fuse

1шт.

342801A1

CABLE

electrical, 70mm2 red

1шт.

342803A1

ELECTRIC CABLE

55mm2 black

1шт.

84137827

ELECTRIC CABLE

10MM2 BLK, Start Year: 01-AUG-09

1шт.

342813A1

CABLE

electrical, 10mm2 black, Years: -01-AUG-09

1шт.

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

86980418

BOLT,Hex, M12 - 1.75 x 20mm, Cl 8.8, DOR

M12 1.75 X 20, HH, 8.8, DOR

1шт.

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

86986032

CABLE

Electrical, 55mm2, Black

1шт.

84004375

BATTERY CUT-OUT

Disconnect, Battery

1шт.

87265464

SWITCH

Disconnect, Rework

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

87265921

CABLE

Battery, Fuse - Cab +

1шт.

87269191

CABLE

Electrical, 55mm2 Black

1шт.

87269192

CABLE

Electrical, 70mm2, Black

1шт.

87676071

CABLE

1/0 Red, Alternator To Starter, Start Year: 01-AUG-09

1шт.

87269193

CABLE

Electrical, 55mm2 Red, Years: -01-AUG-09

1шт.

87269287

CABLE

Battery To Fuse

1шт.

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

3шт.

BN16184

.625 ID Convoluted

1шт.

BN2290332

LOOM

Split 3/4" id #1789

1шт.

BN320001

CABLE

Positive, Battery/Battery

1шт.

BN320002

NEG BATTERY CABLE

/Battery

1шт.

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

257492

CLAMP,14.3mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

BN50062

LOCK NUT,3/8"-16, Stainless Steel

4шт.

BN69860

CIRCUIT BREAKER

150A

1шт.

BN307099

CABLE

Negative, Battery/Disconnect

1шт.

43151

BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd

1шт.

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

Выбрано товаров: 31
