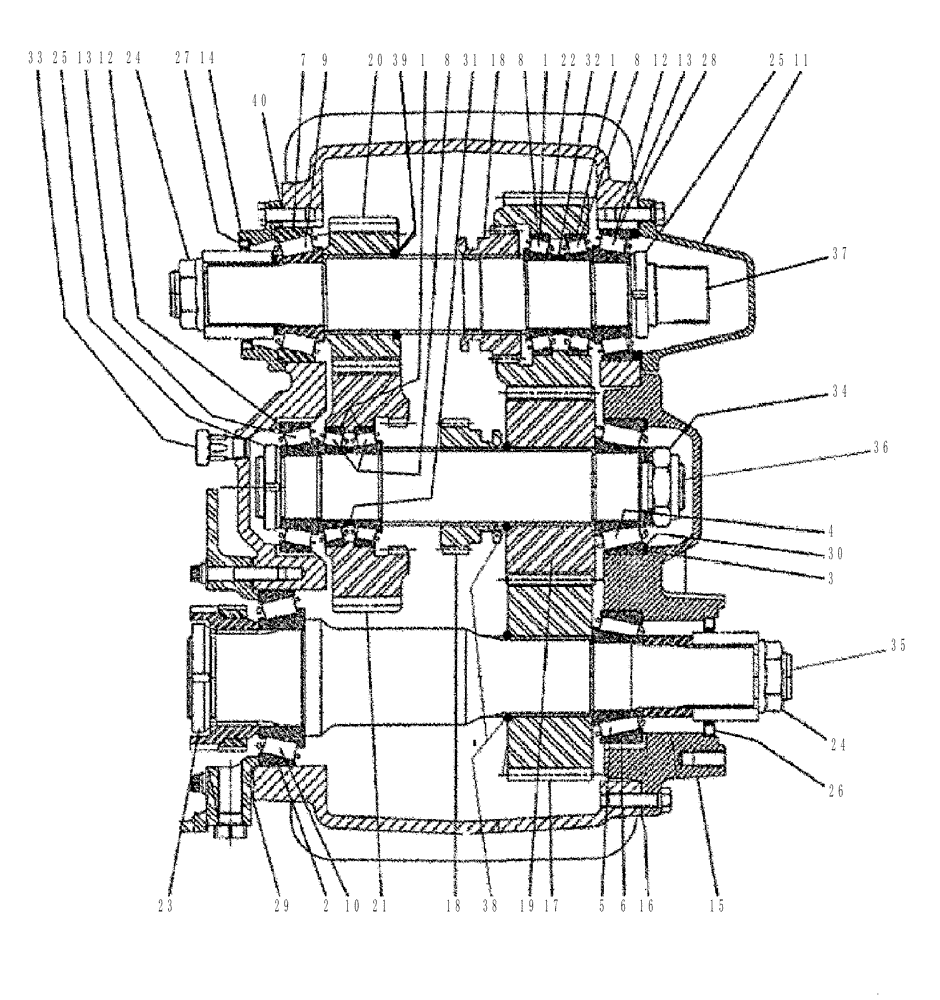

Запчасти Case IH FLX4510 (03-005) - TRANSFER CASE, SERVICE PARTS (03) - TRANSMISSION

1

87577055

BEARING CUP

4шт.

2

87577128

BEARING CUP

1шт.

3

87577142

BEARING CUP

1шт.

4

87577143

ROLLER BEARING

1шт.

5

87577144

ROLLER BEARING

1шт.

6

87577145

BEARING CUP

1шт.

7

87577146

BEARING CUP

1шт.

8

87577147

ROLLER BEARING

4шт.

9

87577148

ROLLER BEARING

1шт.

10

87577149

ROLLER BEARING

1шт.

11

87577155

CAP

SHAFT

1шт.

12

87577150

BEARING CUP

2шт.

13

87577151

ROLLER BEARING

2шт.

14

87577157

CARRIER

carrier

1шт.

15

87577159

CARRIER

Rear

1шт.

16

87577333

GASKET

DOUBLE CARRIER

1шт.

17

87577335

GEAR

35 Tooth Helical

1шт.

18

87577336

GEAR

20 Tooth Clutch

2шт.

19

87577337

GEAR

34 Tooth Helical

1шт.

20

87577338

GEAR

22 TOOTH, LOW PISTON

1шт.

21

87577339

GEAR

37 Tooth Helical, Low

1шт.

22

87577340

GEAR

35 Tooth Helical

1шт.

23

87577341

LOCK NUT

Self, With Dri-Loc

1шт.

24

87269595

LOCK NUT

1-1/2-12, Self Lock

2шт.

25

87577370

LOCK NUT

Self, With Dri-Loc

2шт.

26

87269203

OIL SEAL

Oil, Output Shaft

1шт.

27

87269202

OIL SEAL

Oil, Input Shaft

1шт.

28

87577378

REPAIR KIT

Shim, Rear/Top Shaft

1шт.

29

87577381

REPAIR KIT

Shim, Front/Low Shaft

1шт.

30

87577382

REPAIR KIT

Shim, Rear/Center Shaft

1шт.

31

87577461

SERVICE KIT

Spacer Bearing, Center Shaft

1шт.

32

87577462

SPACER

Bearing, Top Shaft

1шт.

33

219-436

BREATHER,3/8" - 18 NPT, Short, W/ Washer

1шт.

34

87578647

LOCK NUT

1 1/2"-12, Self Lock

1шт.

35

84176320

SHAFT

REAR AUX. TRANS.

1шт.

36

84176319

SHAFT

INTERMEDIATE AUX. TRANS.

1шт.

37

84176318

SHAFT

INPUT AUX. TRANS.

1шт.

38

84176322

RING

RETAINING SPLIT AUX. TRANS.

2шт.

39

84176323

RING

RETAINING SPLIT AUX. TRANS.

1шт.

40

84230444

GASKET

1шт.
