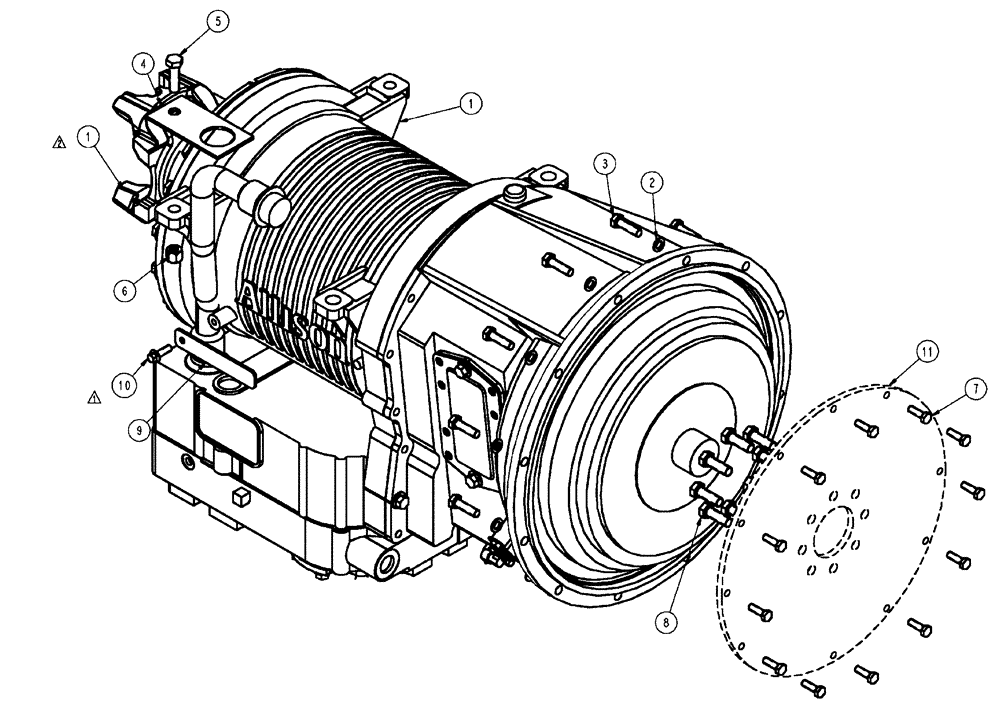

Запчасти Case IH FLX4510 (03-001) - TRANSMISSION ASSEMBLY GROUP, FLX4010 (03) - TRANSMISSION

1

87271284

TRANSMISSION

3000 RDS, CDC 300 HP, Start Serial: 7387

1шт.

1

BN324265

TRANSMISSION

MD3060

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

87743577

SERVICE KIT

High Capacity Filter, Allison 295489

1шт.

Service Parts For Ref. 1

1шт.

BN306289

SENSOR

Transmission Input/Output

1шт.

BN2402071-005

DIPSTICK

Transmission Fluid

1шт.

87269201

GEARSHIFT

Selector, Push Button

1шт.

BN305692

BOX

Relay

1шт.

87269198

YOKE

41 Tooth Internal Spline, Drive, Transmission

1шт.

BN307662

YOKE

43 Tooth Internal Spline, Used on Early Production 4010 / 4510

1шт.

87271301

Transmission ECU, 3000 RDS, CDC300 Hp, Start Serial: 7387

1шт.

BN317600

CONTROL UNIT

Tranmission ECU, MD 3066/2100 RPM

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

2

86625251

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

12шт.

3

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

12шт.

4

BN7146462

MOUNT

Sheet, MD Support

1шт.

5

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

1шт.

6

100038

NUT,M12 x 1.75, Cl 8

1шт.

7

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

12шт.

8

86642438

BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9, Full Thd

8шт.

9

BN315282

PLATE

Transmission Harness

1шт.

10

86625200

SELF-TAP SCREW,Hex Flng, M8 x 1.25 x 20mm

1шт.

11

BN317598

REPAIR KIT

Plate, Flex, Case 3060

1шт.

BN317599

RING GEAR

Ring Gear Assembly, Case

1шт.

Associated Part Of Case 3060, P/N BN317598

1шт.
