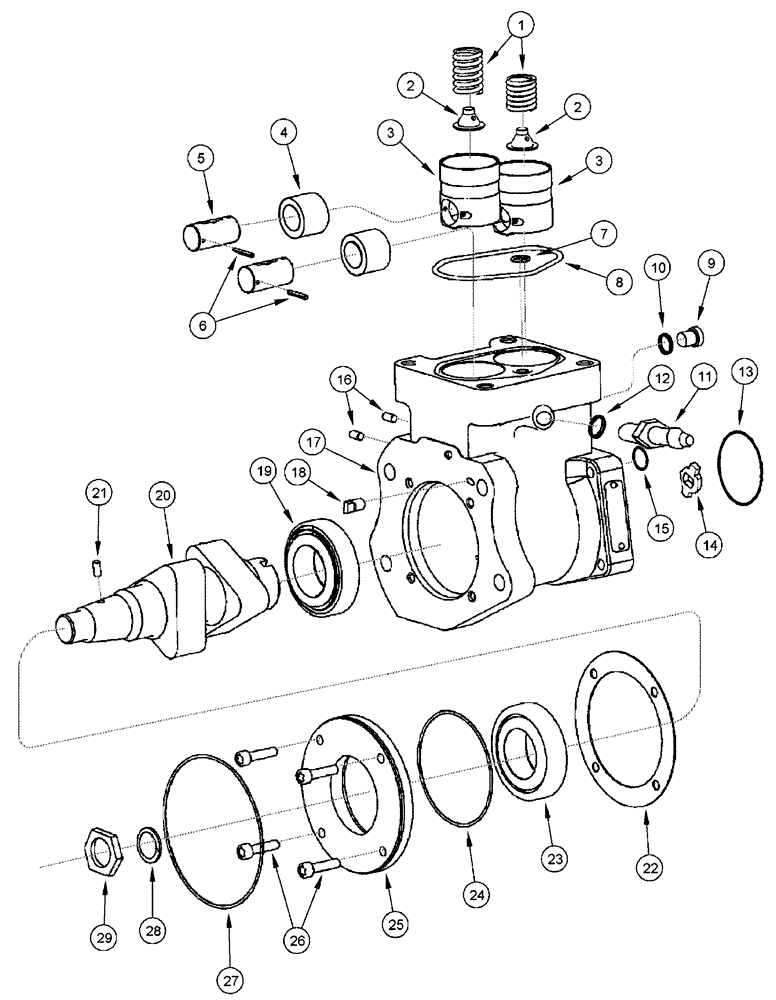

Запчасти Case IH FLX4510 (02-077) - FUEL INJECTION PUMP - CAM HOUSING KIT, FLX4510 (01) - ENGINE

JR4010271

REMAN-HOUSING

Kit - Cam, Remanufactured (North America Only)

1шт.

JC4010271

CORE-HOUSING

Return Number - Cam Kit (Use This Part Number To Return Cam Housing Core For Credit)

1шт.

J4010271

KIT

Cam Housing

1шт.

1

NSS

NOT SOLD SEPARAT

Spring - Compression

2шт.

2

NSS

NOT SOLD SEPARAT

Retainer - Spring

2шт.

3

NSS

NOT SOLD SEPARAT

Tappet

2шт.

4

NSS

NOT SOLD SEPARAT

Roller - Tappet

2шт.

5

NSS

NOT SOLD SEPARAT

Pin - Tappet Roller

2шт.

6

NSS

NOT SOLD SEPARAT

Pin - Roll

2шт.

7

J867640

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

8

J4010636

SEAL

1шт.

9

J678923

PLUG,M10 x 1

Hex Socket, 10 MM

1шт.

10

86625087

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

11

J348448

ELEC CONNECTOR

1шт.

12

86625087

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

13

J867642

O-RING,0.07" Thk x 2.489" ID, -37, Cl 5, 75 Duro

1шт.

14

J4061755

HUB

Drive

1шт.

15

J867641

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

16

NSS

NOT SOLD SEPARAT

Pin - Dowel

2шт.

17

NSS

NOT SOLD SEPARAT

Housing

1шт.

18

NSS

NOT SOLD SEPARAT

Pin

1шт.

19

NSS

NOT SOLD SEPARAT

Bearing - Roller

1шт.

20

NSS

NOT SOLD SEPARAT

Camshaft

1шт.

21

J329899

DOWEL,5.01mm OD x 10mm L

Pin

1шт.

22

NSS

NOT SOLD SEPARAT

Shim

1шт.

23

NSS

NOT SOLD SEPARAT

Bearing - Roller

1шт.

24

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

25

NSS

NOT SOLD SEPARAT

Support - Bearing

1шт.

26

NSS

NOT SOLD SEPARAT

Bolt

4шт.

27

J330081

O-RING

3.859 ID X 0.139 Inch Wide

1шт.

28

J330252

LOCK WASHER

Lock

1шт.

29

J926593

NUT

Hex, 20 MM-1.5

1шт.
