Запчасти Case IH FLX4510 (02-068) - PUMP - FUEL TRANSFER, FLX4510 (01) - ENGINE

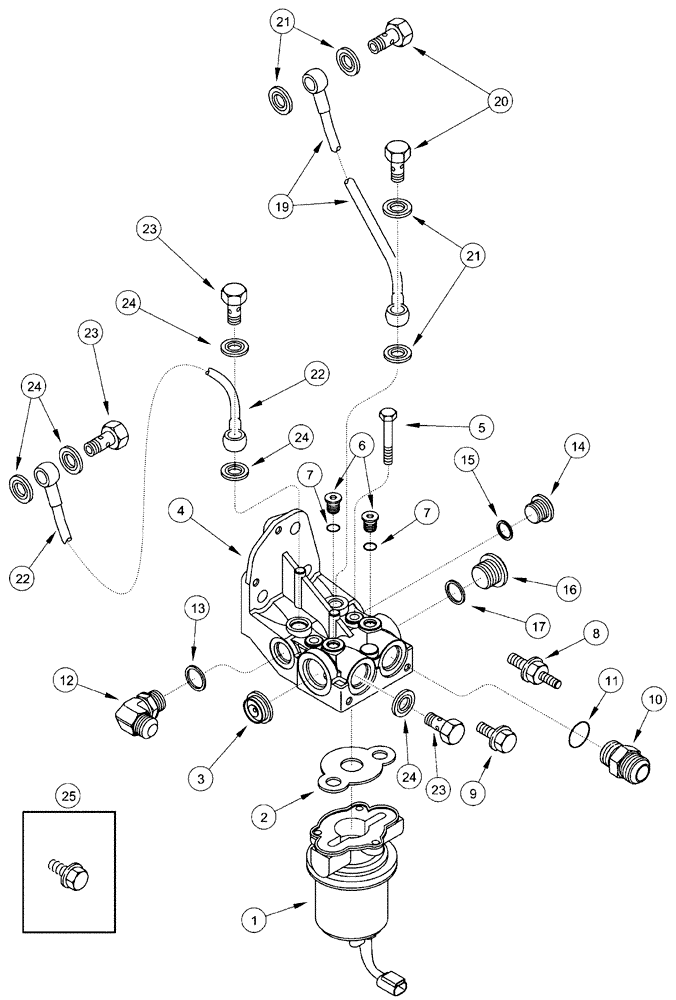

Схема запчастей Case IH FLX4510 - (02-068) - PUMP - FUEL TRANSFER, FLX4510 (01) - ENGINE
25
23
21
5
1
23
22
6
24
12
17
7
13
7
8
22
3
10
24
11
15
14
16
2
24
20
21
24
19
9
23

Артикул

Название

Примечание

Количество

1

J949093

FEED PUMP

Assy - Fuel Transfer

1шт.

2

J944382

GASKET

Fuel Pump

1шт.

3

NSS

NOT SOLD SEPARAT

Valve - Check

1шт.

4

NSS

NOT SOLD SEPARAT

Bracket - Pump

1шт.

5

86637929

BOLT,Hex, 1/4" - 28 x 2", Gr 5

3шт.

6

J678923

PLUG,M10 x 1

Hex Socket, 10 MM

2шт.

7

86625087

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

8

J944152

FLANGE BOLT,Hex, M8 x 1.25 - M10 x 1.5 x 25mm, Cl 8.8

Stud - 10-1.5 X 8-1.25 MM

1шт.

9

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

10

311214A1

ADAPTER

7/8-16 45º FL X OR

1шт.

11

237-8010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 8, 90 Duro

1шт.

12

J3062139

ELBOW

90 Degree, 3/4-16 45 Degree FL X ADJ OR

1шт.

13

237-8008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

1шт.

14

311215A1

PLUG

3/4-16 OR

1шт.

15

237-8008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

1шт.

16

311184A1

PLUG

7/8- 16 Or

1шт.

17

237-8010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 8, 90 Duro

1шт.

19

J943599

FUEL TUBE,8 mm OD

Fuel Drain

1шт.

20

J903035

BANJO BOLT

Hex, 12 - 1.5 X 24 MM

2шт.

21

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

Special, 12 X 19 X 1.5 MM

4шт.

22

J948229

FUEL TUBE,0.394" OD

Fuel Drain

1шт.

23

J924725

BANJO BOLT,M14 x 1.5 x 26mm

Connector

2шт.

24

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

Special, 14 X 20 X 1 MM

4шт.

25

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

1шт.

Выбрано товаров: 24
