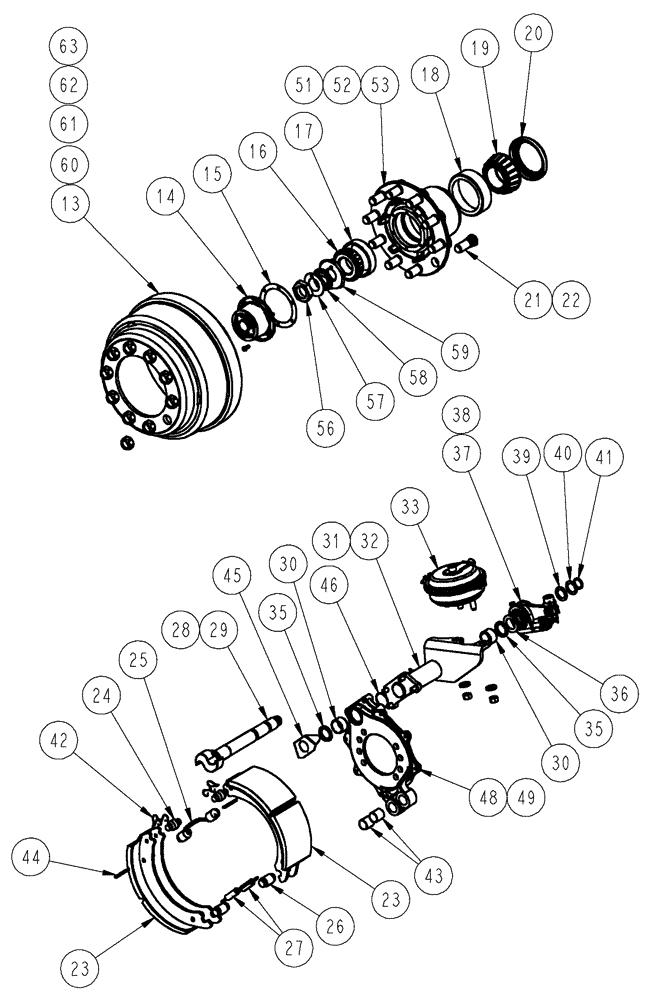

Запчасти Case IH FLX4510 (04-003[02]) - AXLE FRONT STEER, HUB BEARING AND BRAKE ASSY Frame & Suspension

1

87267421

REPAIR KIT

King Pin

1шт.

2

87267422

BOLT

Stop

2шт.

3

87267423

JAM NUT

Jam

2шт.

4

87267424

KEY

Woodruff

4шт.

5

87267419

KNUCKLE

ASSY. LH

1шт.

6

87267420

KNUCKLE

ASSY. RH

1шт.

7

87267418

THREADED TIE-ROD

End, RH

1шт.

8

87267417

THREADED TIE-ROD

End, LH

1шт.

9

NS

NOT SERVICED

Tube

1шт.

10

84180064

TIE-ROD

Assembly, Complete

1шт.

13

NSS

NOT SOLD SEPARAT

Drum, Included in Ref 52 and 53

2шт.

14

87267430

HUB CAP

2шт.

15

87267431

GASKET

Hub Cap

2шт.

16

87267432

ROLLER BEARING

Outer

2шт.

17

87267433

BEARING CUP

outer, Included in Ref 52 and 53

2шт.

18

87267434

BEARING CUP

inner, Included in Ref 52 and 53

2шт.

19

87267435

ROLLER BEARING

Inner

2шт.

20

87267436

SEAL

Wheel Hub

2шт.

21

84178258

STUD

Wheel, LH, Included in Ref 52

10шт.

22

84178256

STUD

Wheel, RH, Included in Ref 53

10шт.

23

84181750

REPAIR KIT

Brake, Major

2шт.

24

84181455

ROLLER

Brake Shoe

4шт.

25

84181457

SPRING

Shoe Return

2шт.

26

84181458

PIN

Anchor, Brake Shoe

4шт.

27

84181460

SPRING

Retaining, Brake Shoe

2шт.

28

84181056

CAMSHAFT

LH - Brake

1шт.

29

84181058

CAMSHAFT

RH - Brake

1шт.

30

84175112

BUSHING

Camshaft

4шт.

31

84181008

BRACKET

LH Brake Chamber

1шт.

32

84181009

BRACKET

RH Brake Chamber

1шт.

33

84181055

CHAMBER

Brake - Cam

2шт.

35

84180992

SEAL

Brake Spider

4шт.

36

84181334

WASHER

Inner Slack Adjustment

2шт.

37

84181052

ADJUSTER

Slack - Auto

2шт.

38

84185320

INSTRUCTION

Installation, Auto Slack Adjuster

1шт.

39

84181337

WASHER

Shim

4шт.

40

84181338

WASHER

Shim

4шт.

41

84181341

SNAP RING

Camshaft Snap Ring

2шт.

42

84181461

RETAINER

Roller, Brake Shoe

4шт.

43

84180993

BUSHING

Anchor Pin

4шт.

44

84181462

PIN

Spring

4шт.

45

84175272

WASHER

Camhead Brake

2шт.

46

84175121

O-RING

Camshaft

2шт.

47

NS

NOT SERVICED

1шт.

48

87389217

SPIDER

RH Brake Assembly

1шт.

49

87389867

SPIDER

LH Brake Assembly

1шт.

50

84173852

FRONT AXLE

Steer

1шт.

See Fig. 04-003

1шт.

51

NSS

NOT SOLD SEPARAT

Hub, Included in Ref 52 and 53

2шт.

52

84178193

HUB

Drum Assy, LH, Includes Ref 13, 17, 18, 21, and 51

1шт.

53

84178192

HUB

Drum Assy, RH, Includes Ref 13, 17, 18, 22, and 51

1шт.

54

87713233

ARM

Tie Rod - RH -F, R

2шт.

55

87713238

ARM

Tie Rod - LH -F, R

2шт.

56

87713434

BEARING LOCK NUT

Wheel Brg. Fin. Outer

2шт.

57

87713435

LOCK WASHER

1.78" x 3.25" x .05"

2шт.

58

87713450

LOCKING RING

Wheel Bearing, 3" od x 1.52" x .25"

2шт.

59

87713452

BEARING LOCK NUT

Wheel Bearing Fin. Inner

2шт.

60

84183831

SHIELD

Dust - RH Front Brake

1шт.

61

84183832

SHIELD

Dust - RH Rear Brake

1шт.

62

84183834

SHIELD

Dust - LH Front Brake

1шт.

63

84183835

SHIELD

Dust - LH Rear Brake

1шт.
