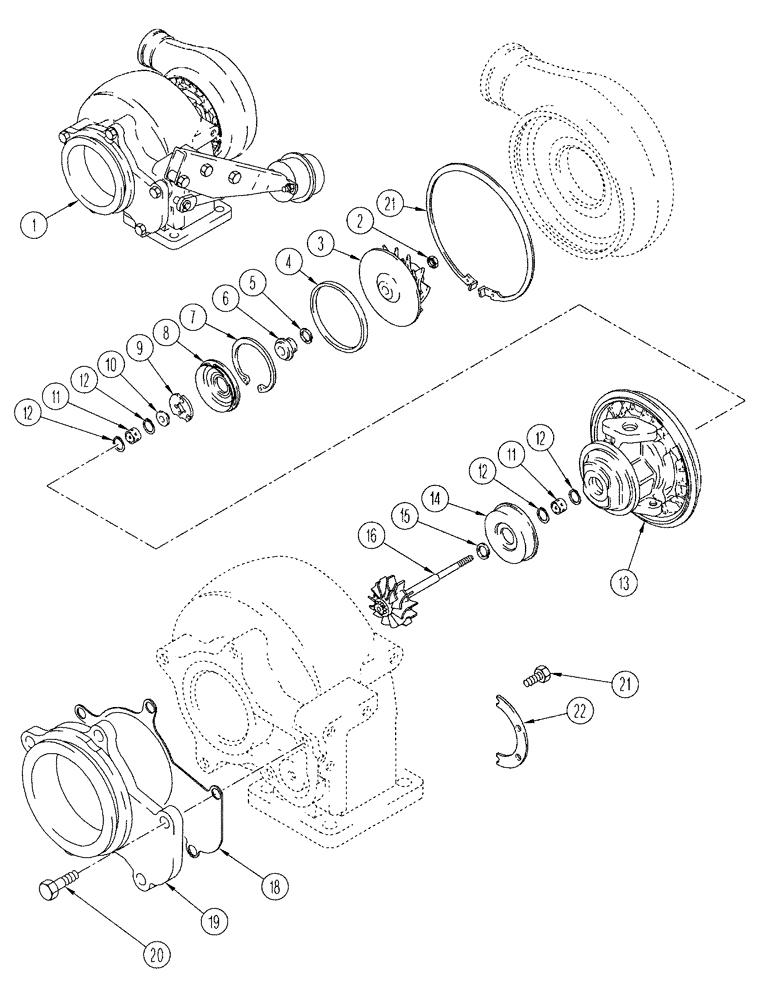

Запчасти Case IH FLX4510 (02-037) - TURBOCHARGER - ASSEMBLY, FLX4510 (01) - ENGINE

1

J800401

TURBOCHARGER

Kit - Turbocharger (Includes J538232 Turbocharger Assembly, Not Serviced Separately. For Other Parts See Fig 02-035 And Fig 02-039)

1шт.

1

JR800401

REMAN-TURBOCHARGER

Kit - Turbocharger, Remanufactured (Includes JR538232 Turbocharger Assembly, Not Serviced Separately. For Other Parts See Fig 02-035 And Fig 02-039)

1шт.

1

JC538232

CORE-TURBOCHARGER

Return Part Number Turbocharger Assembly (Use This Part Number To Return Turbocharger Core For Credit)

1шт.

2

NSS

NOT SOLD SEPARAT

Nut - Hex, Lock

1шт.

Part of Turbocharger Overhaul Kit, P/N J575169

1шт.

Part of Turbocharger Center Housing Assembly, P/N J591196

1шт.

3

NSS

NOT SOLD SEPARAT

Impeller - Turbocharger

1шт.

Part of Turbocharger Center Housing Assembly, P/N J591196

1шт.

4

NSS

NOT SOLD SEPARAT

Seal - O-Ring

1шт.

Part of Turbocharger Overhaul Kit, P/N J575169

1шт.

Part of Turbocharger Center Housing Assembly, P/N J591196

1шт.

5

NSS

NOT SOLD SEPARAT

Seal - Split Ring

1шт.

Part of Turbocharger Overhaul Kit, P/N J575169

1шт.

Part of Turbocharger Center Housing Assembly, P/N J591196

1шт.

6

NSS

NOT SOLD SEPARAT

Slinger - Oil

1шт.

Part of Turbocharger Center Housing Assembly, P/N J591196

1шт.

7

NSS

NOT SOLD SEPARAT

Ring - Retaining

1шт.

Part of Turbocharger Overhaul Kit, P/N J575169

1шт.

Part of Turbocharger Center Housing Assembly, P/N J591196

1шт.

8

NSS

NOT SOLD SEPARAT

Baffle - Oil

1шт.

Part of Turbocharger Overhaul Kit, P/N J575169

1шт.

Part of Turbocharger Center Housing Assembly, P/N J591196

1шт.

9

NSS

NOT SOLD SEPARAT

Bearing - Thrust

1шт.

Part of Turbocharger Overhaul Kit, P/N J575169

1шт.

Part of Turbocharger Center Housing Assembly, P/N J591196

1шт.

10

NSS

NOT SOLD SEPARAT

Collar - Thrust

1шт.

Part of Turbocharger Center Housing Assembly, P/N J591196

1шт.

11

NSS

NOT SOLD SEPARAT

Bearing - Impeller Shaft

2шт.

Part of Turbocharger Overhaul Kit, P/N J575169

1шт.

Part of Turbocharger Center Housing Assembly, P/N J591196

1шт.

12

NSS

NOT SOLD SEPARAT

Ring - Retaining

4шт.

Part of Turbocharger Overhaul Kit, P/N J575169

1шт.

Part of Turbocharger Center Housing Assembly, P/N J591196

1шт.

13

NSS

NOT SOLD SEPARAT

Housing - Bearing

1шт.

Part of Turbocharger Center Housing Assembly, P/N J591196

1шт.

14

NSS

NOT SOLD SEPARAT

Shield - Heat

1шт.

Part of Turbocharger Center Housing Assembly, P/N J591196

1шт.

15

NSS

NOT SOLD SEPARAT

Seal - Split Ring

1шт.

Part of Turbocharger Overhaul Kit, P/N J575169

1шт.

Part of Turbocharger Center Housing Assembly, P/N J591196

1шт.

16

NSS

NOT SOLD SEPARAT

Rotor And Shaft - Turbocharger

1шт.

Part of Turbocharger Center Housing Assembly, P/N J591196

1шт.

17

NSS

NOT SOLD SEPARAT

Plate - Oil Seal, Not Shown

1шт.

Part of Turbocharger Center Housing Assembly, P/N J591196

1шт.

18

J537960

GASKET,0.46mm Thk

Adapter

1шт.

19

J537979

ADAPTER

exhaust outlet

1шт.

20

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

21

J759917

SET SCREW

Hex Head

6шт.

Part of Turbocharger Overhaul Kit, P/N J575169

1шт.

22

J534309

PLATE

Clamping

2шт.

23

J533163

SNAP RING

Retaining

1шт.

J575169

REPAIR KIT

Overhaul, Turbocharger

1шт.

Consists of Refs. 2, 4, 5, 7, 8, 9, 11, 12, 15, 21

1шт.

J591196

CARTRIDGE

Center Housing Assembly - Turbocharger

1шт.

Consists of Refs. 2 - 17

1шт.
