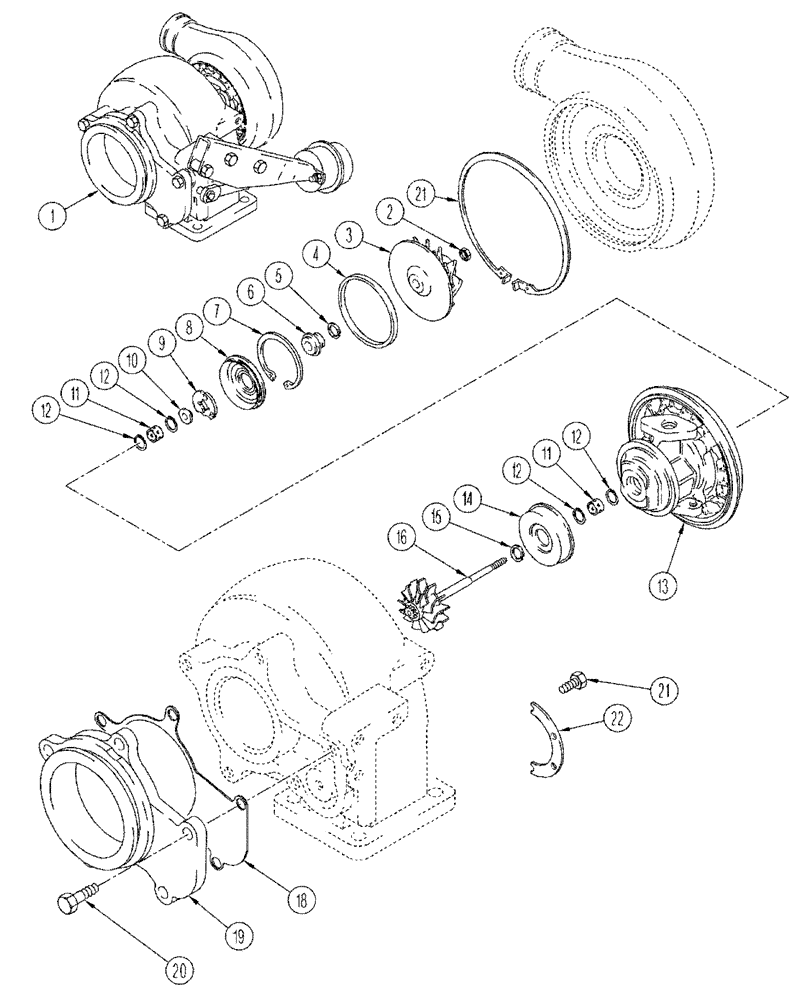

Запчасти Case IH FLX4510 (02-036) - TURBOCHARGER - ASSEMBLY, FLX4010 (01) - ENGINE

1

J800406

TURBOCHARGER

Kit - Turbocharger (Includes J591022 Turbocharger Assembly, Not Serviced Separately. For Other Parts See Page 2-68 And Page 2-76

1шт.

1

84410510R

REMAN-TURBOCHARGER

FLX4010, FLX4510, Both (8/04-8/06), Reman for New PN J800406

1шт.

1

84410510C

CORE-TURBOCHARGER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Nut Hex, Lock

1шт.

Part of Turbocharger Center Housing Assembly, P/N J591196

1шт.

3

NSS

NOT SOLD SEPARAT

Impeller - Turbocharger

1шт.

Part of Turbocharger Center Housing Assembly, P/N J591196

1шт.

4

NSS

NOT SOLD SEPARAT

Seal - O-Ring

1шт.

Part of Turbocharger Overhaul Kit, P/N J575169

1шт.

Part of Turbocharger Center Housing Assembly, P/N J591196

1шт.

5

NSS

NOT SOLD SEPARAT

Seal Split Ring

1шт.

Part of Turbocharger Overhaul Kit, P/N J575169

1шт.

Part of Turbocharger Center Housing Assembly, P/N J591196

1шт.

6

NSS

NOT SOLD SEPARAT

Slinger - Oil

1шт.

Part of Turbocharger Center Housing Assembly, P/N J591196

1шт.

7

NSS

NOT SOLD SEPARAT

Ring - Retaining

1шт.

Part of Turbocharger Overhaul Kit, P/N J575169

1шт.

Part of Turbocharger Center Housing Assembly, P/N J591196

1шт.

8

NSS

NOT SOLD SEPARAT

Baffle - Oil

1шт.

Part of Turbocharger Overhaul Kit, P/N J575169

1шт.

Part of Turbocharger Center Housing Assembly, P/N J591196

1шт.

9

NSS

NOT SOLD SEPARAT

Bearing - Thrust

1шт.

Part of Turbocharger Overhaul Kit, P/N J575169

1шт.

Part of Turbocharger Center Housing Assembly, P/N J591196

1шт.

10

NSS

NOT SOLD SEPARAT

Collar - Thrust

1шт.

Part of Turbocharger Center Housing Assembly, P/N J591196

1шт.

11

NSS

NOT SOLD SEPARAT

Bearing - Impeller Shaft

2шт.

Part of Turbocharger Overhaul Kit, P/N J575169

1шт.

Part of Turbocharger Center Housing Assembly, P/N J591196

1шт.

12

NSS

NOT SOLD SEPARAT

Ring - Retaining

4шт.

Part of Turbocharger Overhaul Kit, P/N J575169

1шт.

Part of Turbocharger Center Housing Assembly, P/N J591196

1шт.

13

NSS

NOT SOLD SEPARAT

Housing - Bearing

1шт.

Part of Turbocharger Center Housing Assembly, P/N J591196

1шт.

14

NSS

NOT SOLD SEPARAT

Shield - Heat

1шт.

Part of Turbocharger Center Housing Assembly, P/N J591196

1шт.

15

NSS

NOT SOLD SEPARAT

Seal - Split Ring

1шт.

Part of Turbocharger Overhaul Kit, P/N J575169

1шт.

Part of Turbocharger Center Housing Assembly, P/N J591196

1шт.

16

NSS

NOT SOLD SEPARAT

Rotor And Shaft - Turbocharger

1шт.

Part of Turbocharger Center Housing Assembly, P/N J591196

1шт.

17

NSS

NOT SOLD SEPARAT

Plate - Oil Seal, Not Shown

1шт.

Part of Turbocharger Center Housing Assembly, P/N J591196

1шт.

18

J537960

GASKET,0.46mm Thk

Adapter

1шт.

19

J537979

ADAPTER

exhaust outlet

1шт.

20

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

21

J533163

SNAP RING

Retaining

1шт.

22

J534309

PLATE

Clamping

2шт.

23

J759917

SET SCREW

Hex Head

6шт.

Part of Turbocharger Overhaul Kit, P/N J575169

1шт.

J575169

REPAIR KIT

Overhaul, Turbocharger

1шт.

Consists of Refs. 2, 4, 5, 7, 8, 9, 11, 12, 15, 21

1шт.

J591196

CARTRIDGE

Center Housing Assembly - Turbocharger

1шт.

Consists of Refs. 2 - 17

1шт.
