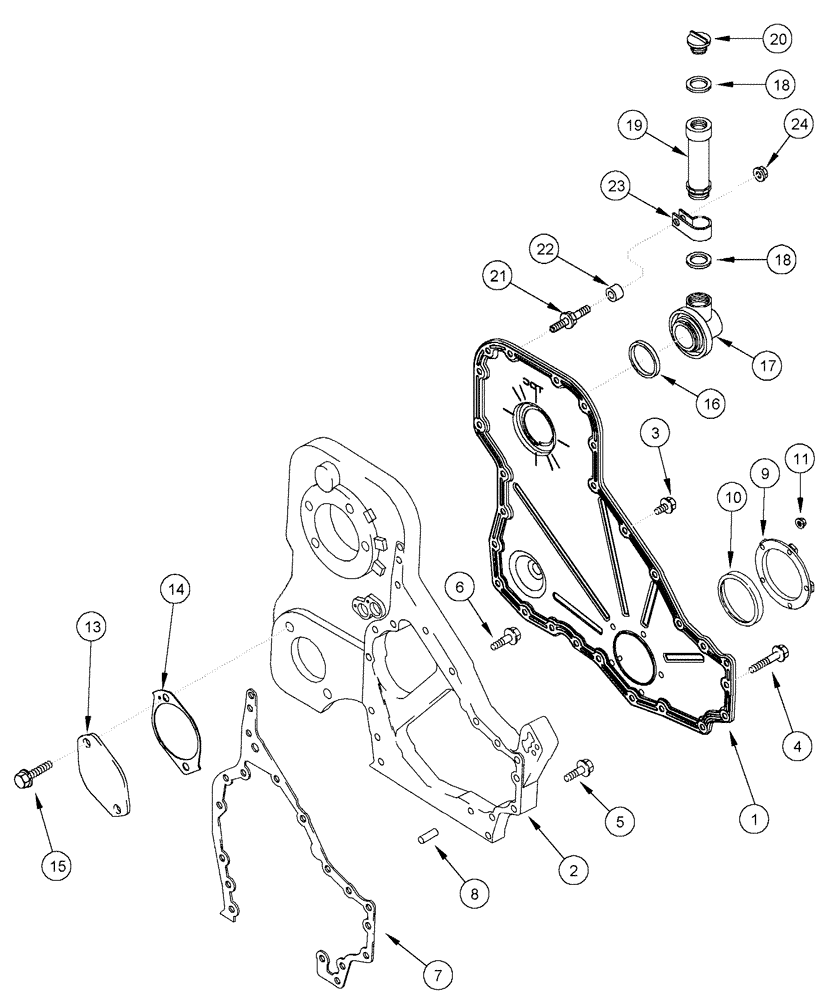

Запчасти Case IH FLX4510 (02-031) - FRONT GEAR COVER, FLX4010 & FLX4510 (01) - ENGINE

1

J943813

HOUSING

Cover - Gear, Front

1шт.

2

J945595

COVER

Housing - Gear

1шт.

3

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

14шт.

4

J926863

FLANGE BOLT

Hex Flange, 8 - 1.25 X 50 MM, Class 10.9

11шт.

Cover To Housing To Block

1шт.

5

J926846

FLANGE BOLT

Hex Flange, 8 - 1.25 X 20 MM, Class 10.9

3шт.

6

J943885

BOLT

Hex Flange, 8 - 1.25 X 40 MM

3шт.

7

J944293

GASKET,1.01mm Thk

Front Gear Housing

1шт.

8

J900257

PIN,10.01mm OD x 16mm L

10 mm x 16 mm long

2шт.

9

J941786

CARRIER

Front Seal

1шт.

10

NSS

NOT SOLD SEPARAT

Seal - Oil, Front

1шт.

Order Seal Kit A77790 Or A77808 On Fig. 02-118

1шт.

11

87493304

FLANGE NUT

FLANGE, M6 P/T NON-DIR ALL MTL 8 PL

5шт.

12

NSS

NOT SOLD SEPARAT

Sealant

1шт.

Not Shown

1шт.

Seal Carrier To Front Cover, And Cover To Housing

1шт.

13

J940246

COVER

Plate

1шт.

14

J940245

GASKET,1.27mm Thk

hydraulic pump

1шт.

15

86624962

BOLT,Hex, M12 x 25mm, Cl 10.9, Full Thd

2шт.

16

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

Front Access Cover

1шт.

17

J921644

ADAPTER

engine oil fill

1шт.

18

J936876

SEALING RING,30mm ID x 48mm OD x 2.8mm Thk

Fill Cap

2шт.

19

J914738

TUBE,32 mm ID x 38 mm OD x 138 mm L

Oil Filler

1шт.

20

J914136

CAP

Oil Fill Tube

1шт.

21

J921816

SPECIAL BOLT

Stud - Hex Flange, 6 - 1 X 8 - 1.25 MM

1шт.

22

J943408

SPACER

Mounting

1шт.

23

A77695

MOUNTING CLIP

#20 Clamp - P-Type

1шт.

24

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.
