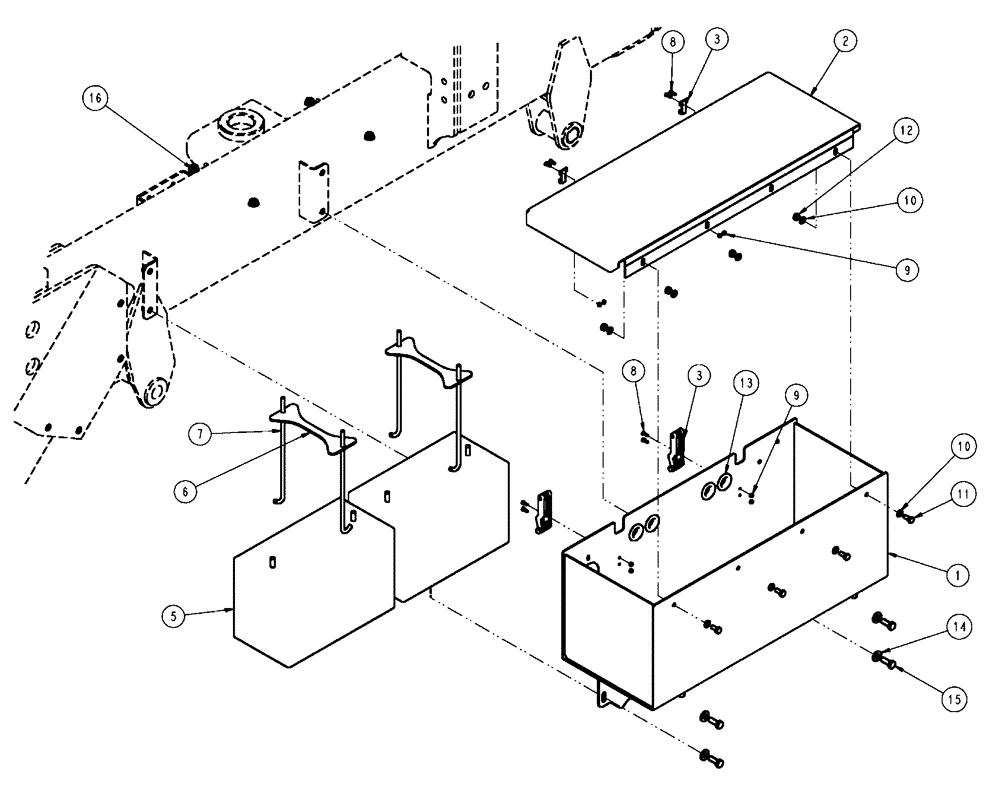

Запчасти Case IH FLX4510 (02-025) - BATTERY GROUP (01) - ENGINE

1

344072A1

BOX

battery/tool

1шт.

2

344076A1

COVER

lid, battery/tool box

1шт.

3

BN306240

LATCH

Soft Latch W/REV, Keeper

2шт.

*5

91734C1

WET BATTERY

12V, 950CCA, Stud

2шт.

6

BN320331

BRACKET

Mount, Battery

2шт.

7

87691876

ROD

Battery Hold Down

4шт.

8

87536486

SCREW,M4 x 0.7 x 16.01mm, Cl 12.9

Hex, M4 x 12, 8.8, Full Thd

8шт.

9

385681

NUT,M4 x 0.7, Cl 8

8шт.

10

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

11

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

12

86528579

NUT,M8 x 1.25

4шт.

13

BN2290753

GROMMET

2870 (7/8" Hole)

4шт.

14

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

4шт.

15

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

4шт.

16

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

4шт.
