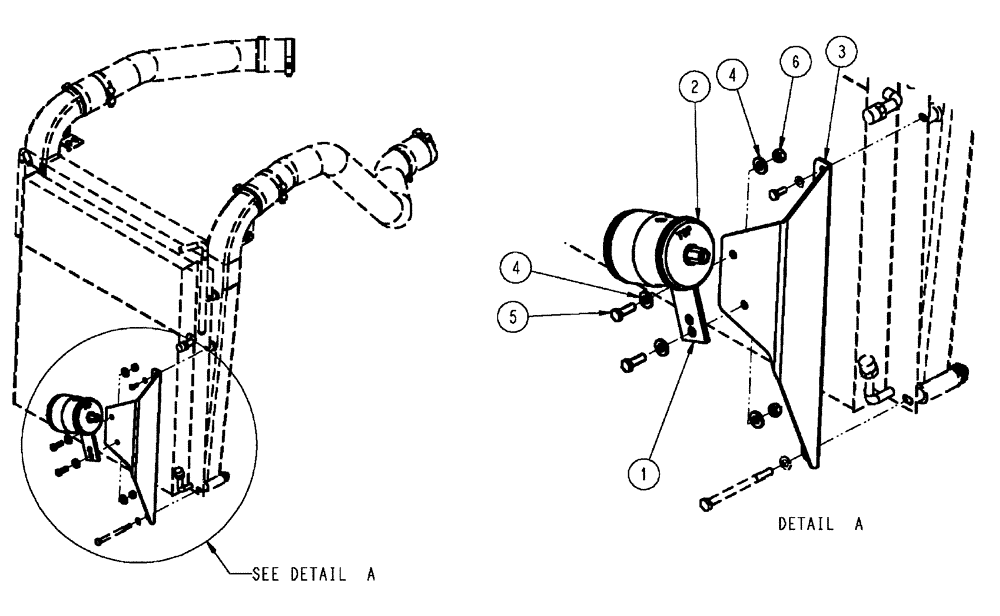

Запчасти Case IH FLX4510 (02-020) - DRYER GROUP, AIR CONDITIONER (01) - ENGINE

1

D145289

SUPPORT

Bracket, Receiver Dryer

1шт.

2

295006A1

RECEIVER-DRYER

horizontal mount

1шт.

3

87267052

MOUNTING PLATE

AC Dryer

1шт.

4

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

4шт.

5

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

6

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.
