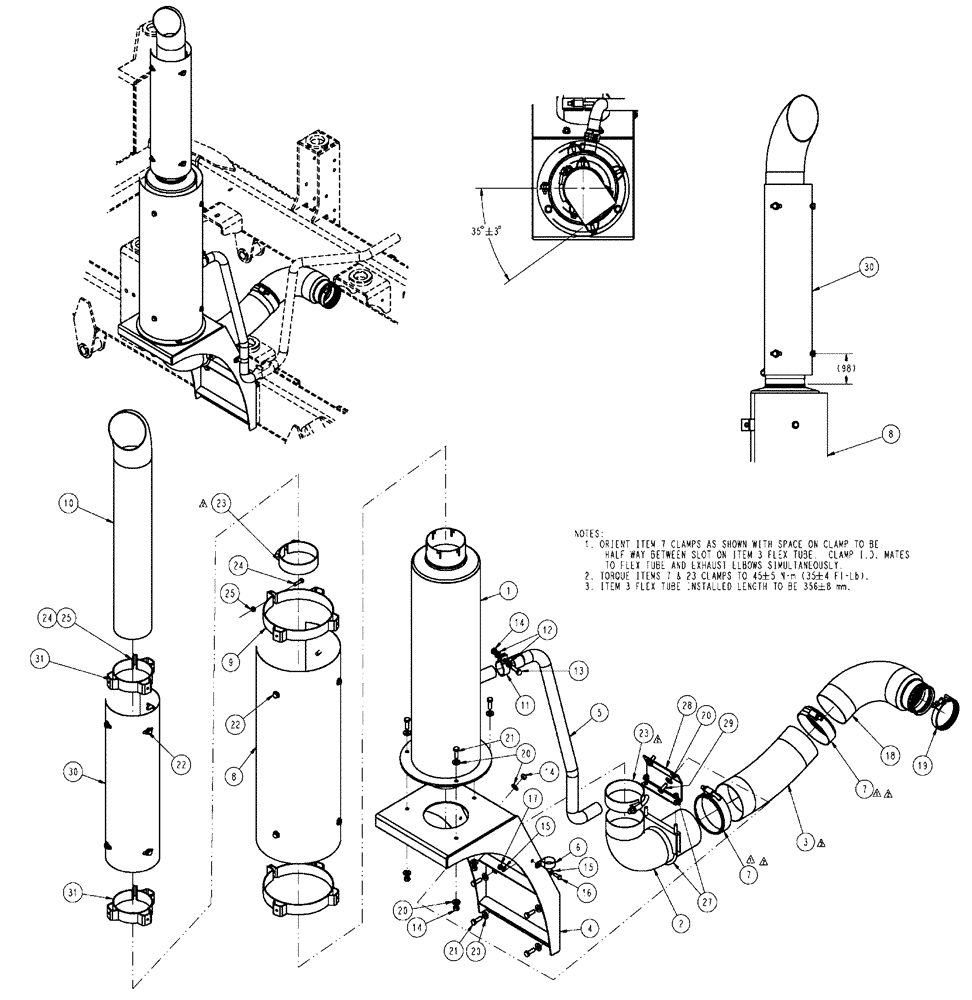

Запчасти Case IH FLX4510 (02-014) - EXHAUST GROUP (01) - ENGINE

1

BN313594

MUFFLER

Body, 18-2450 CFM

1шт.

2

87268064

ELBOW

90º 5" OD

1шт.

3

413677A1

TUBE

Flexible, Exhaust

1шт.

4

86986688

SUPPORT

Mount, Muffler

1шт.

5

87267426

TUBE,38.10 mm OD

Pre-Cleaner

1шт.

6

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

7

413678A1

CLAMP,129.03mm ID

Assembly, Flexible Exhaust

2шт.

8

BN313588

SHIELD

Heat Shield, Muffler

1шт.

9

BN313590

CLAMP

Heat Shield

2шт.

10

86986686

EXHAUST SYSTEM PIPE

Stack, 36" Curved

1шт.

11

334985A1

CLAMP

Exhaust

1шт.

12

140017

WASHER,M10 x 20mm OD x 2mm Thk

2шт.

13

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

14

100037

LOCK NUT,M10 x 1.5, Cl 8

6шт.

15

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

16

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

17

86528579

NUT,M8 x 1.25

1шт.

18

86986677

ELBOW

Exhaust, Turbo

1шт.

19

A170807

CLAMP,102mm ID

4" T-Bolt

1шт.

20

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

14шт.

21

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

7шт.

22

BN313589

BOLT

Heat Shield

12шт.

23

BN313592

CLAMP

Bent Bolt, 5"

2шт.

24

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

25

86528579

NUT,M8 x 1.25

4шт.

27

BN306386

CLAMP,129.5mm ID

Muffler 5"

1шт.

28

87268765

BRACKET

Exhaust Elbow, 4 Wheel

1шт.

29

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

2шт.

30

87269207

SHIELD

Heat, 5" Exhaust

1шт.

31

87269208

PIPE CLAMP

5" Heat Shield

2шт.
