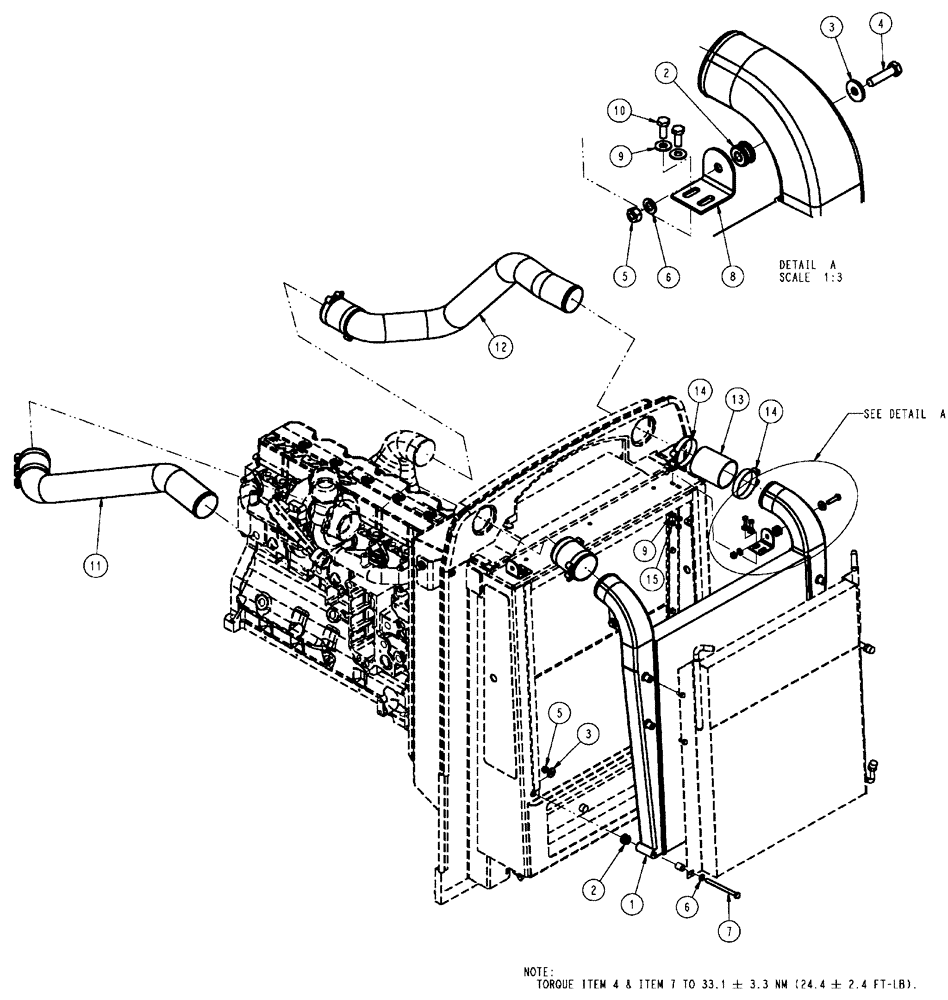

Запчасти Case IH FLX4510 (02-013) - CHARGE AIR GROUP (01) - ENGINE

1

259332A4

AFTERCOOLER

Charge Air

1шт.

2

60-6650T1

RUBBER BUSHING

Mount

4шт.

3

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

4шт.

4

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

5

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

6

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

4шт.

7

86508575

BOLT,Hex, M10 x 130mm, Cl 8.8

2шт.

8

BN324064

ANGLE

mount, top CAC

2шт.

9

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

8шт.

10

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

11

343402A1

TUBE,88.9 mm OD, 757, 254 mm Length

CAC Inlet

1шт.

12

343403A1

TUBE

CAC Outlet

1шт.

13

87271031

INTAKE AIR HOSE,88.90 mm ID x 152.40

4шт.

14

87270795

CLAMP

T-Bolt 3.56" Spring

8шт.

15

86528579

NUT,M8 x 1.25

4шт.
