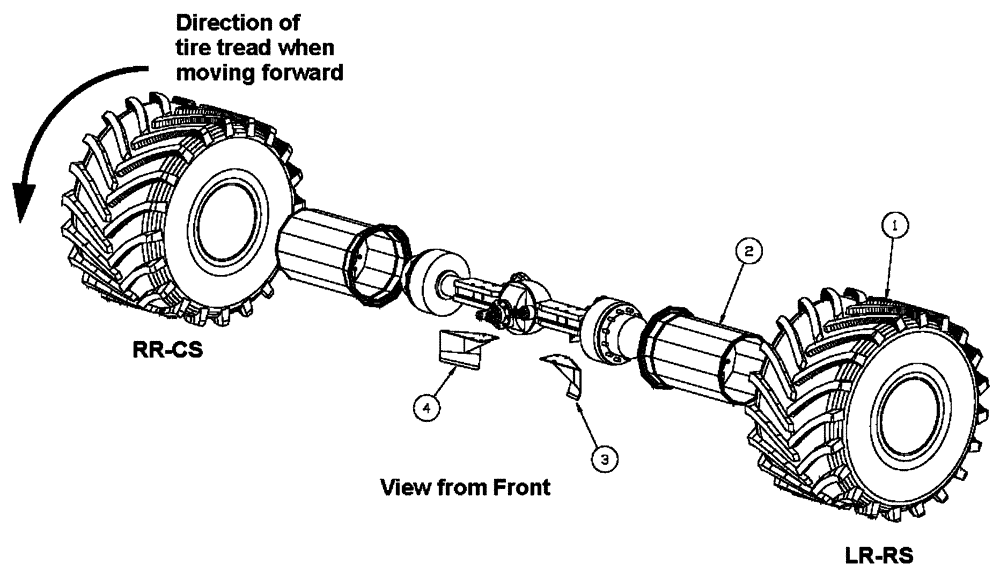

Запчасти Case IH FLX4375 (05-003[01]) - REAR TIRE GROUP - 73” Tires

1

BN306896

73 X 44-32 16P Fire

1шт.

Contact Your Local Tire Dealer For Tire Warranty And Replacement Tires.

1шт.

2

BN323606

WHEEL

Rear Wheel Weldment

1шт.

2a

BN304755

O-RING,7mm Thk x 757mm ID, 65 Duro

1шт.

Service Parts For Ref. 2

1шт.

2b

BN306493

VALVE STEM

Valve Stem

1шт.

Service Parts For Ref. 2

1шт.

2c

BN304754

RING

Lock Ring 32"

1шт.

Service Parts For Ref. 2

1шт.

2d

BN304753

RING

Side Ring 32" X 1.70"

1шт.

Service Parts For Ref. 2

1шт.

2e

333089A1

DECAL

torque wheel nuts

1шт.

Service Parts For Ref. 2

1шт.

3

BN302168

MUD CLEANER

Left Rear

1шт.

4

BN302169

MUD CLEANER

Right Rear

1шт.

4a

BN315229

WHEEL NUT

Flange, Wheel, 22 mm

12шт.

Associated Part Of Mud Scraper-Right Rear, P/N BN302169

1шт.

4b

BN306433

CLAMP

Flange (Optional)

3шт.

4c

BN306436

BOLT

5/8 X 1, (Optional)

6шт.
