(05-001[06]) - FRONT TIRE GROUP - 48”/ 54”, 48" GOODYEAR STGLW TIRE-MTD RH, 48 X 31, 12PL,

Запчасти Case IH FLX4375 (05-001[06]) - FRONT TIRE GROUP - 48”/ 54”, 48" GOODYEAR STGLW TIRE-MTD RH, 48 X 31, 12PL, Tires

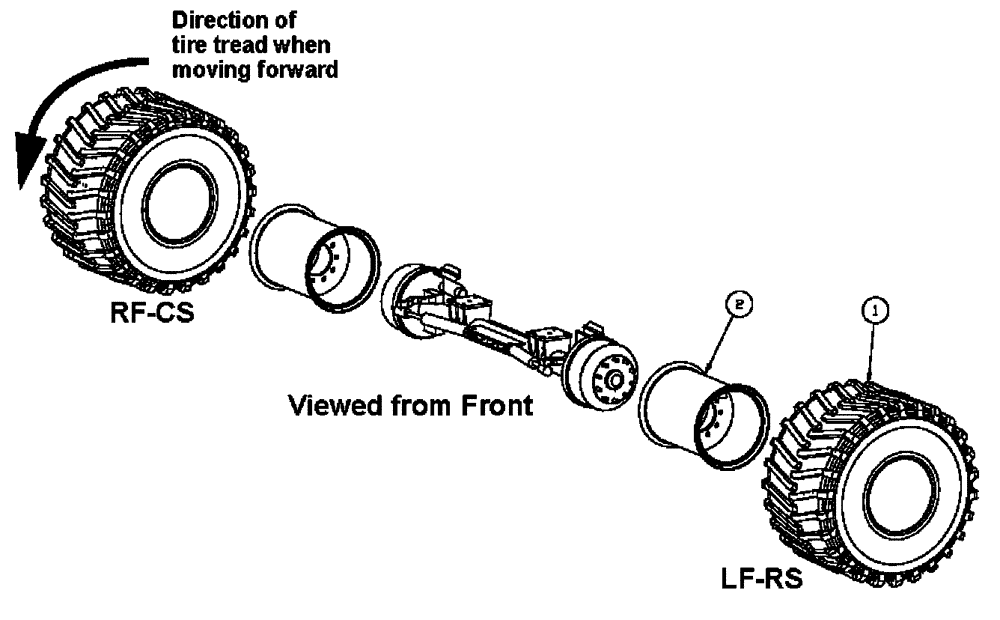

Схема запчастей Case IH FLX4375 - (05-001[06]) - FRONT TIRE GROUP - 48”/ 54”, 48" GOODYEAR STGLW TIRE-MTD RH, 48 X 31, 12PL, Tires
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN321220

48 X 31-20 12P STGLW

1шт.

2

BN311816

WHEEL ASSY

Front Weldment

1шт.

2a

BN2297540

O-RING,489.71 mm ID

20" Wheel, McCord

1шт.

Service Parts For Ref. 2

1шт.

2b

BN67197

VALVE STEM

w/Nut, Tubeless Tire

1шт.

Service Parts For Ref. 2

1шт.

2c

BN2391220

LOCKING RING

20" Wheel, McCord #LR20JM

1шт.

Service Parts For Ref. 2

1шт.

2d

BN2403676

FLANGE

Bead Seat, 20" Wheel, McCord F8020JM

1шт.

Service Parts For Ref. 2

1шт.

2e

333089A1

DECAL

torque wheel nuts

1шт.

Service Parts For Ref. 2

1шт.
