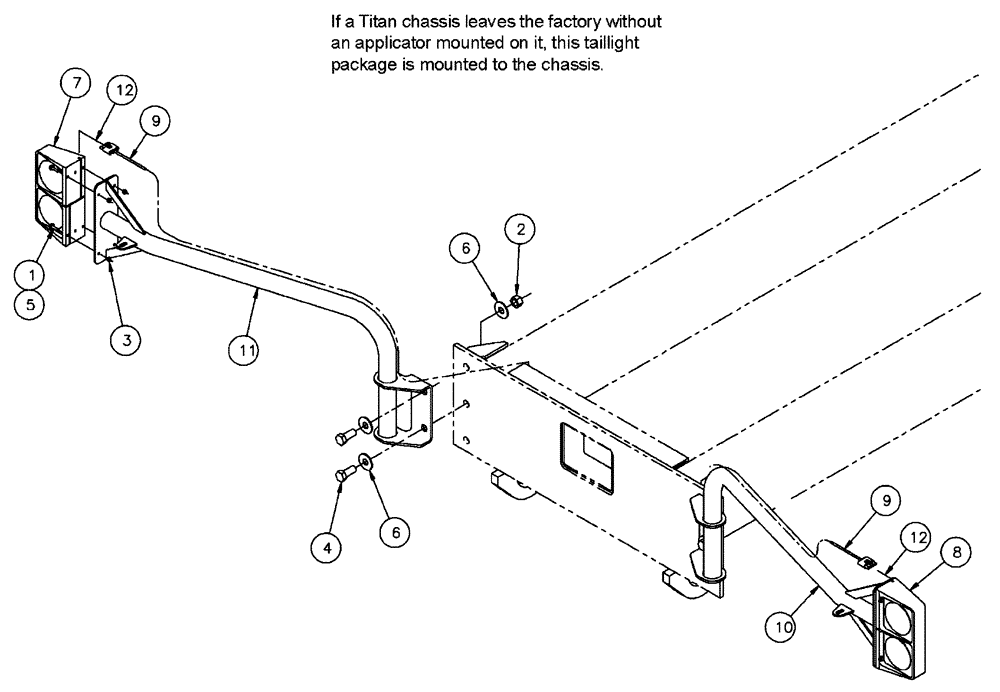

Запчасти Case IH FLX4375 (10-020) - TAILLIGHT MOUNT ASSEMBLY Options

1

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

8шт.

2

380424

NUT,M20 x 2.5, Cl 8

4шт.

3

353308

NUT,M6 x 1.0, Cl 8

8шт.

4

86508588

BOLT,Hex, M20 x 45mm, Cl 8.8

4шт.

5

BN300488

WASHER

M6, Flat, 8.8

8шт.

6

BN300493

WASHER

M20, FW, G5

8шт.

7

BN307190

LIGHT

Dual-W/Brake LH

1шт.

8

BN307191

LIGHT

Dual W/Brake RH

1шт.

9

BN312831

WIRE HARNESS

Rear Lights, Flex

1шт.

10

BN322544

ARM

Weldment, Taillight, CS

1шт.

11

BN322545

ARM

Weldment, Tail light, RS

1шт.

12

BN313717

EXTENSION

Taillight Harn

2шт.
