Запчасти Case IH FLX4375 (10-014) - TAILLIGHT GROUP N-LEADER Options

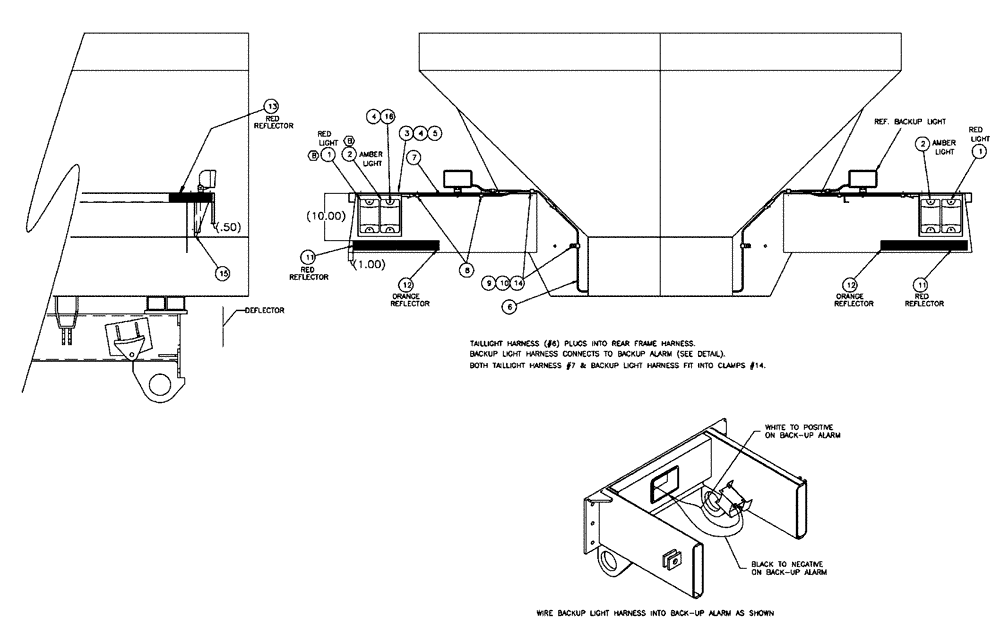

Схема запчастей Case IH FLX4375 - (10-014) - TAILLIGHT GROUP N-LEADER Options
3
4
8
7
2
9
1
11
5
10
16
11
6
12
2
13
12
14
15
1
4

Артикул

Название

Примечание

Количество

1

BN325077

LAMP, TAIL

LIGHT, TAIL Led Red, 12V

2шт.

2

BN325078

LIGHT

Turn, Led Amber, 12V

2шт.

3

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

8шт.

4

BN55359

LOCK NUT,1/4"-20, SS

16шт.

5

BN50138

WASHER,1/4", SS

16шт.

6

BN312831

WIRE HARNESS

Rear Lights, Flex

1шт.

7

86986654

WIRE HARNESS

Extention, Taillight

2шт.

8

BN570022

CLAMP

vinyl coated 1/2"

2шт.

9

BN50222

BOLT

5/16-18 X .75, TH, SS, PH

8шт.

10

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

8шт.

11

311863A1

REFLECTOR

Retroreflective Red

2шт.

12

311865A1

REFLECTOR

fluorescent orange

2шт.

13

86986655

REFLECTOR

Rework, Red

2шт.

14

BN43197

CLAMP

Vinyl Covered 3/4"

4шт.

15

87267089

MOUNTING PLATE

Tail Light, (LED)

2шт.

16

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

8шт.

Выбрано товаров: 16
