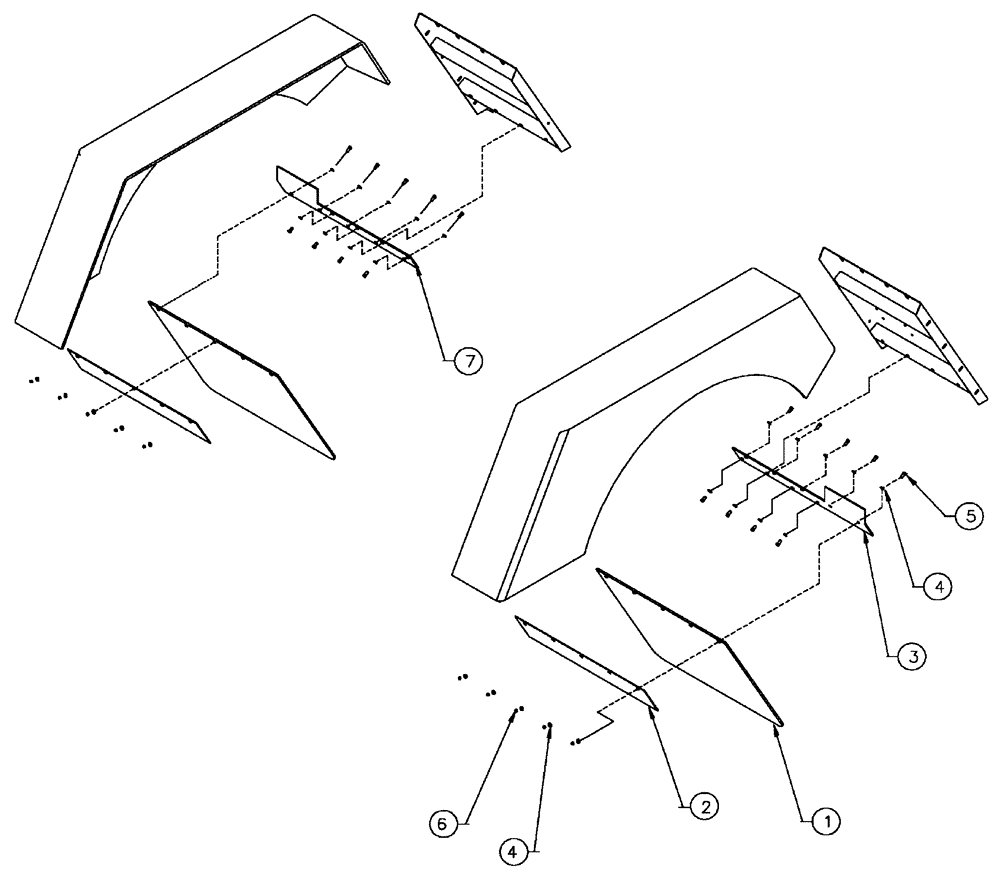

Запчасти Case IH FLX4375 (10-006) - FRONT MUD FLAP GROUP Options

1

BN310598

MUDFLAP

Front

2шт.

2

BN306262

BRACKET, SUPPORTING

Mud Flap Mount, Front

2шт.

3

BN306339

BRACKET

Mud Flap R.S.

1шт.

4

BN300499

WASHER,M10, 10.9

28шт.

5

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

18шт.

6

100037

LOCK NUT,M10 x 1.5, Cl 8

10шт.

7

BN306340

MOUNTING PLATE

Mud Flap C.S.

1шт.
