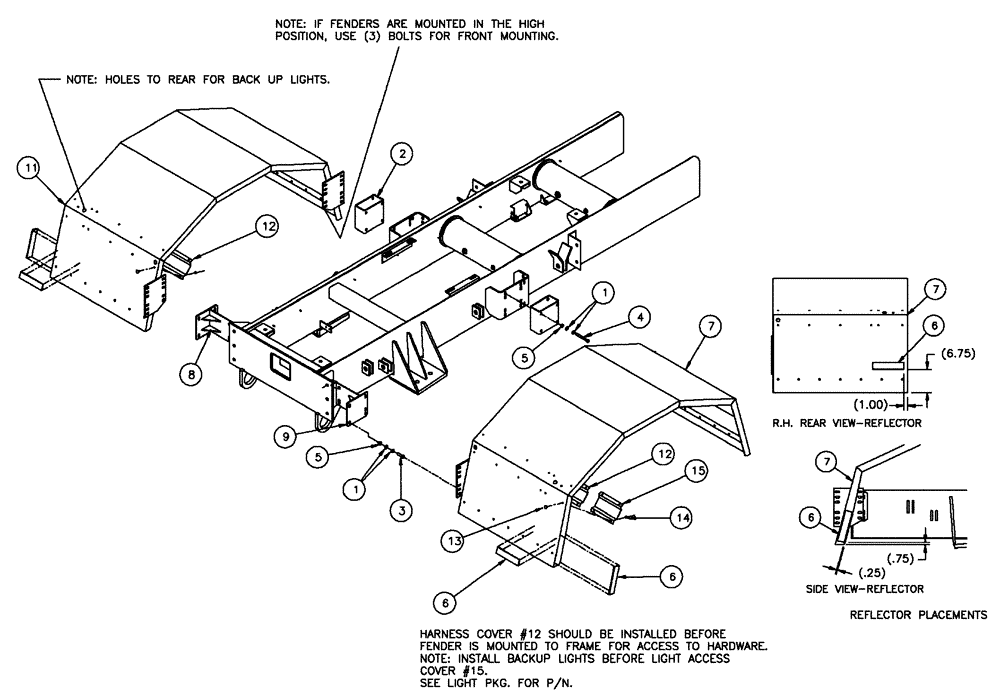

Запчасти Case IH FLX4375 (10-003) - REAR FENDER GROUP, 66" (FLX4300) Options

1

BN300500

WASHER,M12, 10.9

32шт.

2

86986651

SPACER

Fender Mount (4")

2шт.

3

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

8шт.

4

385427

BOLT,Hex, M12 x 1.75 x 150mm, Cl 8.8

8шт.

5

100038

NUT,M12 x 1.75, Cl 8

16шт.

6

311863A1

REFLECTOR

Retroreflective Red

4шт.

7

86986012

FENDER

RH, SS, 66"

1шт.

8

BN318873

MOUNTING PLATE

LH., R-Fendr

1шт.

9

BN318875

MOUNTING PLATE

RH., R-Fendr

1шт.

11

86986013

FENDER

LH, SS, 66"

1шт.

12

86986020

COVER

Backup Light Harness

2шт.

13

BN50205

BOLT

1/4"-20 x .625, TH, SS, Philips

24шт.

14

BN50052

LOCK NUT,1/4"-20, USR, SS

24шт.

15

86986656

COVER

Access-Light

2шт.
