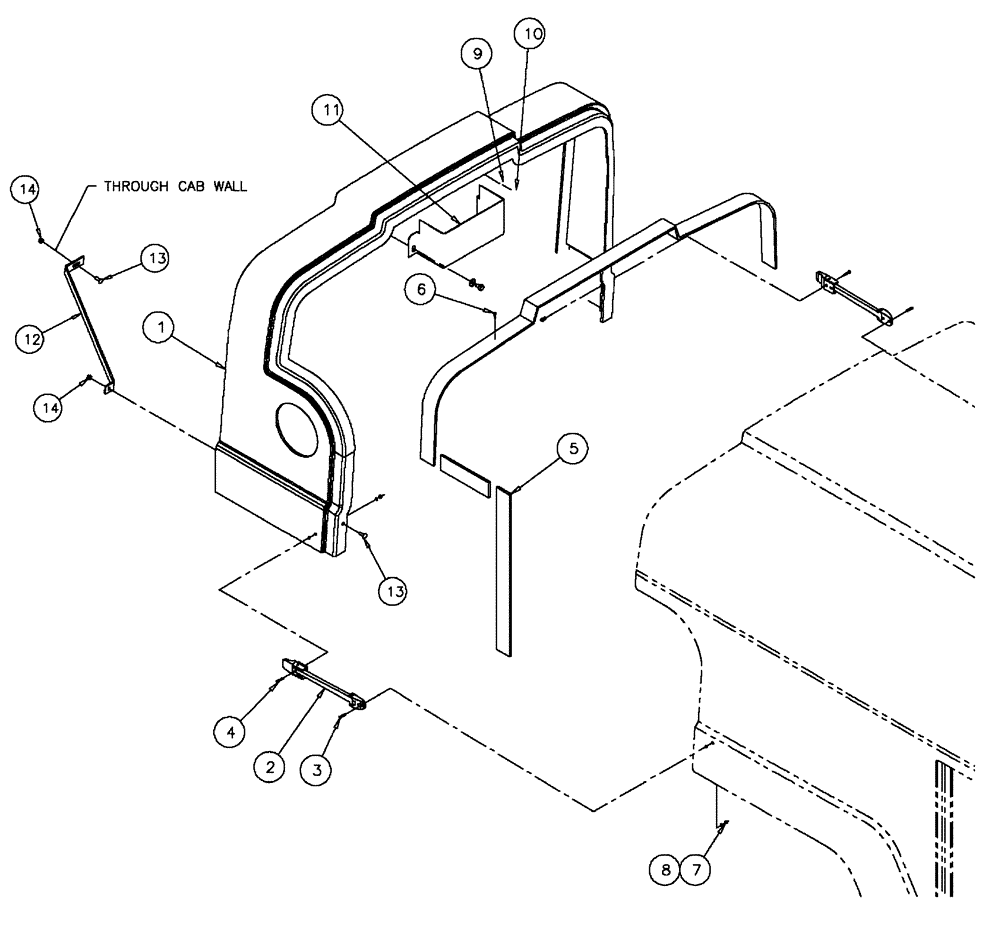

Запчасти Case IH FLX4375 (04-023) - COWLING GROUP Frame & Suspension

1

BN317994

COWLING

Red, For Skirts

1шт.

2

BN310732

LATCH

Hood, 543

2шт.

4

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

4шт.

5

BN313860

BELT,1.25" W x

Cotton, Red

9.5шт.

6

BN303821

RIVET

.18 x .57 Steel

28шт.

7

BN2294431

SET SCREW,1/4" - 20

1/4-20, FLN, SS

8шт.

8

BN50138

WASHER,1/4", SS

8шт.

9

BN50141

WASHER

5/16, FW, G5

7шт.

10

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

7шт.

11

BN306490

BOX

Wiper Shield

1шт.

12

BN324847

SUPPORT

Cowl

1шт.

13

BN50207

BOLT

1/4-20 X .75, TH, SS

2шт.

14

BN50052

LOCK NUT,1/4"-20, USR, SS

2шт.
