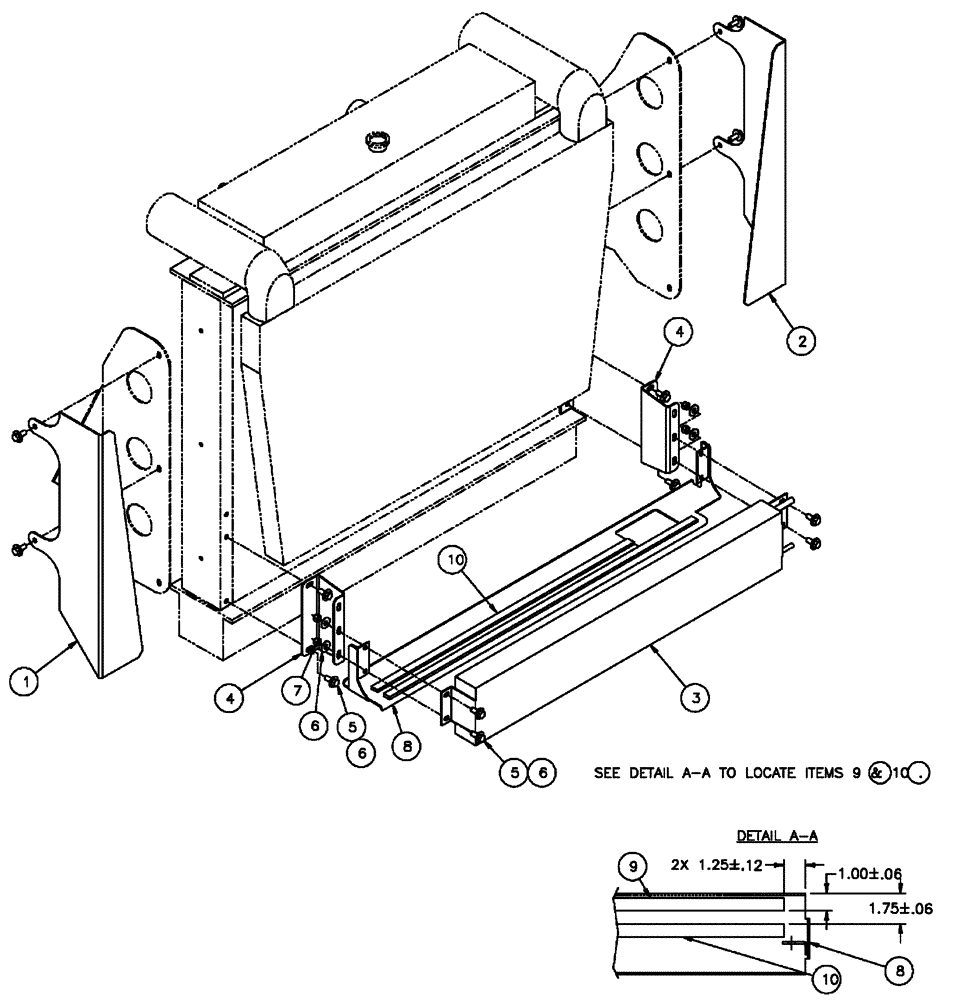

Запчасти Case IH FLX4375 (01-008) - CONDENSOR GROUP (FLX4300) (10) - CAB

1

BN309404

MOUNTING PLATE

Condenser, CS

1шт.

2

BN309405

MOUNTING PLATE

Condenser, RS

1шт.

3

BN309527

CONDENSER

HVAC, 4 Wheel

1шт.

4

BN309451

MOUNT

Mount, CS 4300

2шт.

5

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

6

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

12шт.

7

86528579

NUT,M8 x 1.25

4шт.

8

BN313546

BRACKET, SUPPORTING

Condensor Mount, Weldment

1шт.

9

BN313819

FOAM

A/C Condenser, 4 Wheel

1шт.

10

BN318168

FOAM

A/C Condensor

1шт.
