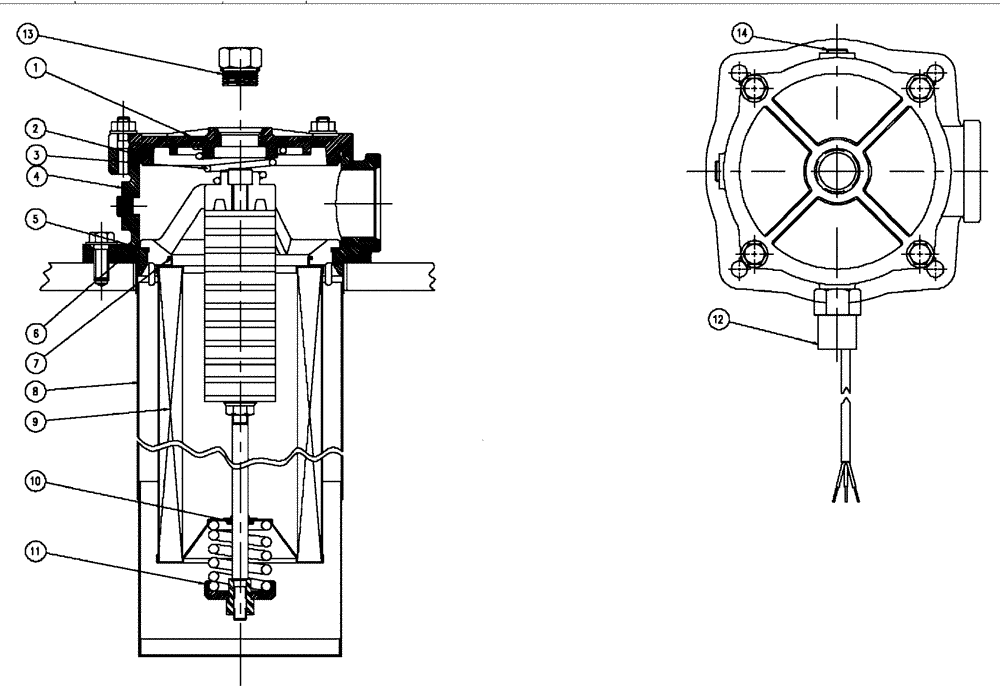

Запчасти Case IH FLX4375 (06-010) - HYDRAULIC TANK FILTER (07) - HYDRAULICS

0

BN307779

Filter, Tank, SAE 2, 4, 6 ABS

1шт.

Includes Refs. 1 Thru 12 & 14, 15

1шт.

1

BN54259

COVER

Filter Assembly

1шт.

2

BN54260

O-RING

Cover, Filter A

1шт.

3

BN54261

COIL SPRING

Conical

1шт.

4

BN306202

HEAD

1шт.

5

BN54263

O-RING

Insert

1шт.

6

BN54264

GASKET

Tank

1шт.

7

BN54265

SEAL

Bypass

1шт.

8

BN54266

FILTER

Diffusor

1шт.

9

BN307777

ELEMENT

For 307779

1шт.

10

BN54267

O-RING

Element

1шт.

11

BN54268

Assembly - Bypass

1шт.

12

BN53955

PRESSURE SWITCH

For 53952

1шт.

13

BN311360

INDICATOR

Return Line

1шт.

14

BN54270

PLUG

EXT. W/O-Ring #12

1шт.

15

BN54271

PLUG

INT. Hex 1/4 NPT

2шт.

15a

BN54269

SEAL KIT

For Filter (Not Shown)

1шт.
