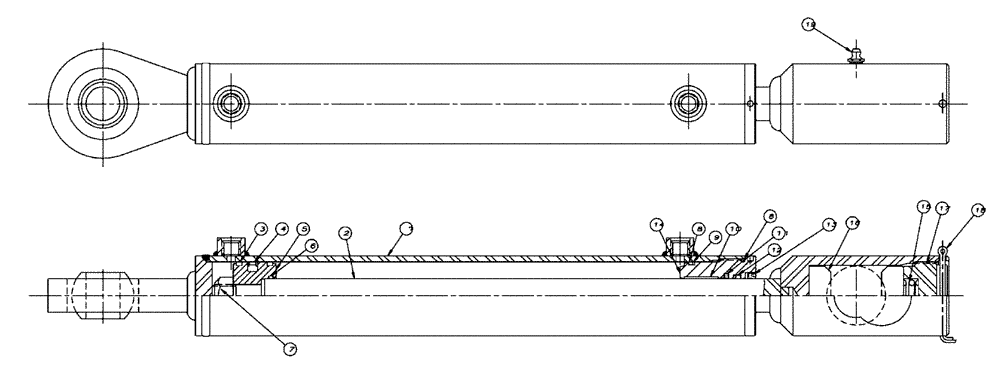

Запчасти Case IH FLX4375 (06-009) - STEERING CYLINDER (07) - HYDRAULICS

0

344004A1

CYLINDER,Double Acting, 25.4mm Rod, 304.8mm Stroke

hydraulic, steer, 2 x 12 x 1

1шт.

0

344004A1R

REMAN-HYD CYLINDER

FLX4300, FLX4375, Both FLOATER (9/02-6/03)

1шт.

0

344004A1C

CORE-HYD CYLINDER

Return Number

1шт.

1

86986230

CASE

Assembly

1шт.

2

342217A1

PISTON ROD

1шт.

3

86986223

WEAR RING

2шт.

4

86986216

SEAL

Piston

1шт.

5

86986226

PISTON

1шт.

6

14457880

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

7

86986220

LOCK NUT

1шт.

8

238-5133

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

2шт.

9

84251311

WASHER

Backup

1шт.

10

86986217

WEAR RING

1шт.

11

86986219

SEAL

Step

1шт.

12

86986218

SEAL

U-Cup

1шт.

13

86986215

WIPER

1шт.

14

86986227

HEAD

1шт.

15

86986239

SPRING

1шт.

16

86986236

PLATE

2шт.

17

86986238

PLUG

1шт.

18

86986237

COTTER PIN

5/32" x 3 1/2"

1шт.

19

BN10151

LUBE NIPPLE

1/8"-27 Straight

1шт.

20

342216A1

SEAL KIT

1шт.
