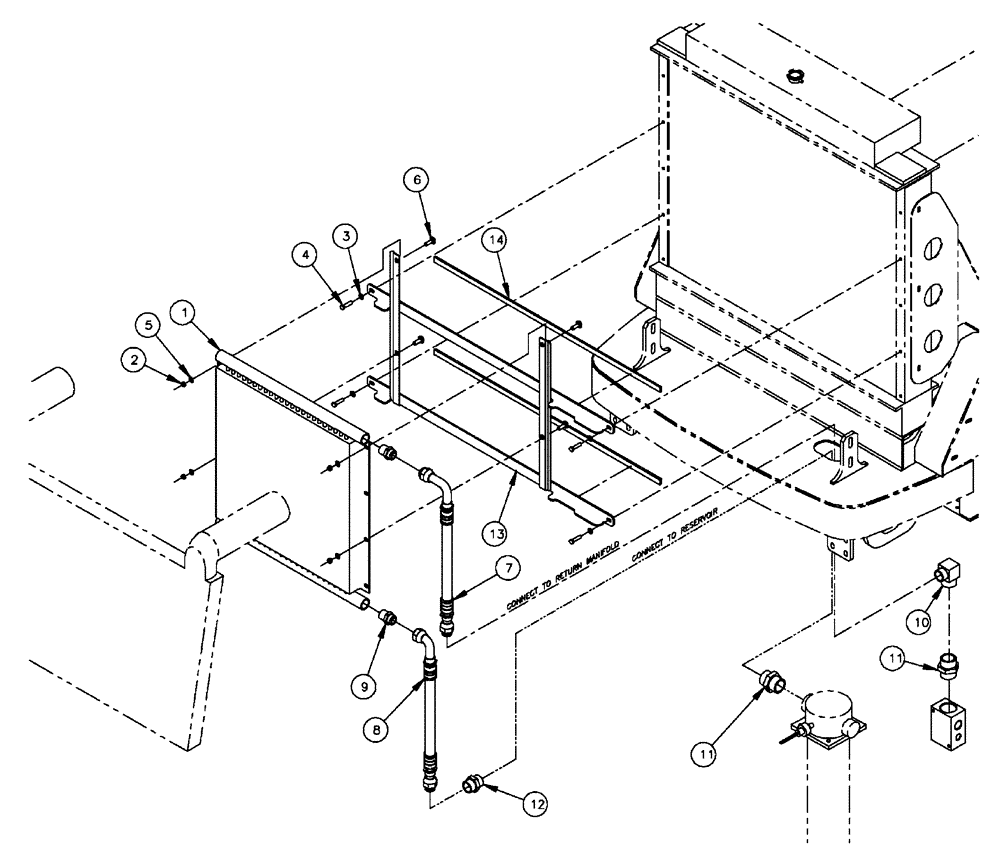

Запчасти Case IH FLX4375 (06-005) - OIL COOLER PKG. (FLX4300) (07) - HYDRAULICS

1

BN24984

OIL COOLER

1шт.

2

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

3

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

4шт.

4

814-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

4шт.

5

BN300490

BOLT

M10, FW, 8.8

4шт.

6

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

4шт.

7

BN311639

HOSE

16 X 190.85

1шт.

8

BN311647

HOSE

16 X 145.85

1шт.

9

BN51590

FITTING

16Mj-16Mb

2шт.

10

BN302575

FITTING

16Mor-20Mbx90

1шт.

11

BN305539

FITTING

20Fb-24Mb

2шт.

12

BN311052

FITTING

16Mor-20Mb

1шт.

13

BN314533

BRACKET, SUPPORTING

Weldment, Oil Cooler, Mount

1шт.

14

BN314536

FOAM

Oil Cooler, 4Wheel

2шт.
