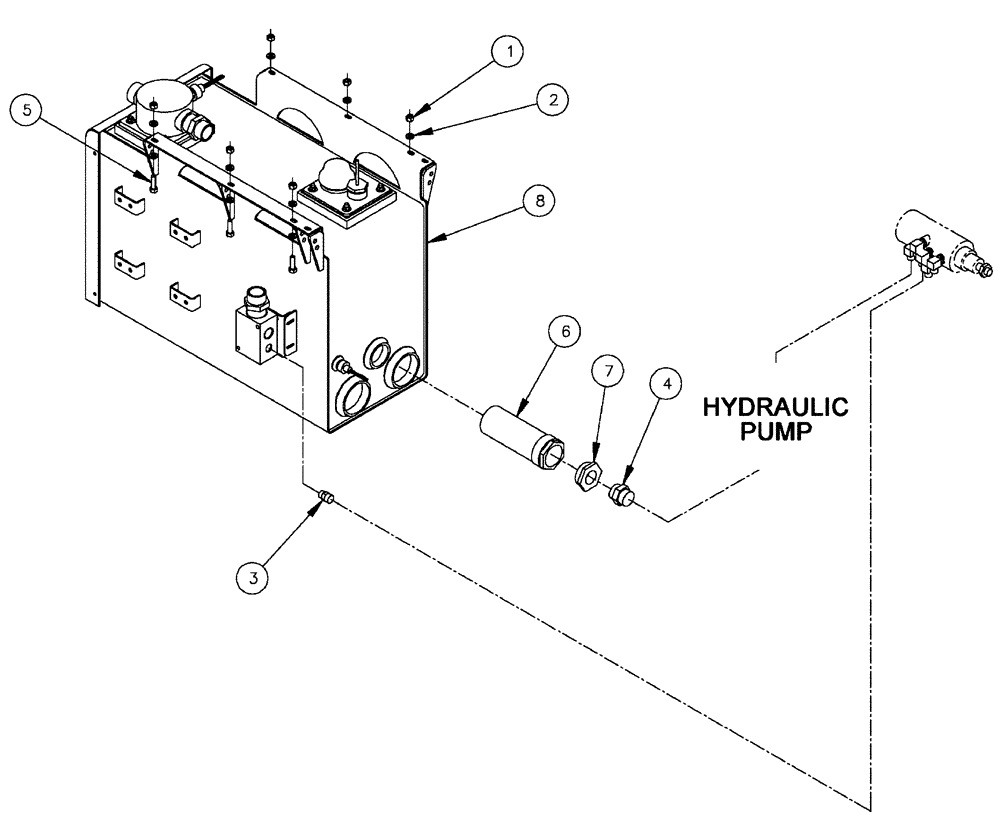

Запчасти Case IH FLX4375 (06-001) - HYDRAULIC TANK ASSEMBLY (07) - HYDRAULICS

1

100037

LOCK NUT,M10 x 1.5, Cl 8

6шт.

2

BN300499

WASHER,M10, 10.9

12шт.

3

BN302650

FITTING

8Mor-8Mb

1шт.

4

BN302660

FITTING

20Mor-20Mb

1шт.

5

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

6шт.

6

BN303527

FILTER STRAINER

48Mbx-32Fb, 100

1шт.

7

BN303941

FITTING

32Mb-20Fb

1шт.

8

BN324742

Hydraulic, See fig 06-004

1шт.
