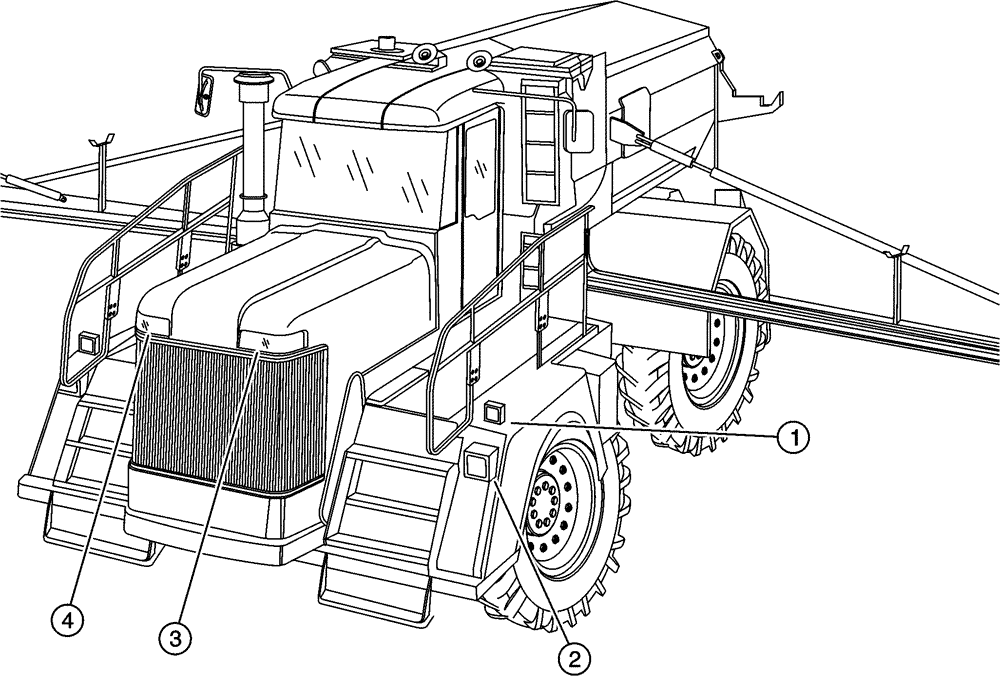

Запчасти Case IH FLX4375 (08-006) - LIGHTS & ELECTRICAL GROUP (06) - ELECTRICAL

1

BN2297232

LIGHT

Park/Turn, RH

1шт.

1a

BN2297236

LIGHT

Park/Turn, LH

1шт.

Same Part Of Light, Park/Turn, RH, P/N. BN2297232 But Opposite Side

1шт.

2

BN2297248

HEADLAMP

12V

2шт.

3

BN300054

HEADLIGHT

Assy, RH

1шт.

3a

BN300052

HOUSING

Headlamp, RH

1шт.

Service Parts For Ref. 3

1шт.

3b

BN300056

LAMP

Halogen, Inner, 50 Watt

2шт.

Service Parts For Ref. 3

1шт.

3c

BN300057

LAMP

Halogen, Outer, 37 Watt

1шт.

Service Parts For Ref. 3

1шт.

4

BN300055

HEADLIGHT

Assembly, LH

1шт.

4a

BN300055

HEADLIGHT

Assembly, LH

1шт.

Service Parts For Ref. 4

1шт.

4b

BN300056

LAMP

Halogen, Inner, 50 Watt

2шт.

Service Parts For Ref. 4

1шт.

4c

BN300057

LAMP

Halogen, Outer, 37 Watt

1шт.

Service Parts For Ref. 4

1шт.

4d

BN2294963

SWITCH

Stop Light (Located On The Foot Brake), Not Shown

1шт.

4e

BN309472

COVER

11 X 8 Electrical, Not Shown

1шт.

4f

NSS

NOT SOLD SEPARAT

Harness, Hood Lights, See Fig 08-003, Not Shown

1шт.

4g

NSS

NOT SOLD SEPARAT

Harness, Main Light, See Fig 08-003, Not Shown

1шт.

4h

NSS

NOT SOLD SEPARAT

Harness, Headlight, See Fig 08-003, Not Shown

1шт.
