(08-002[01]) - ENGINE ELECTRICAL (FLX4300)

Запчасти Case IH FLX4375 (08-002[01]) - ENGINE ELECTRICAL (FLX4300) (06) - ELECTRICAL

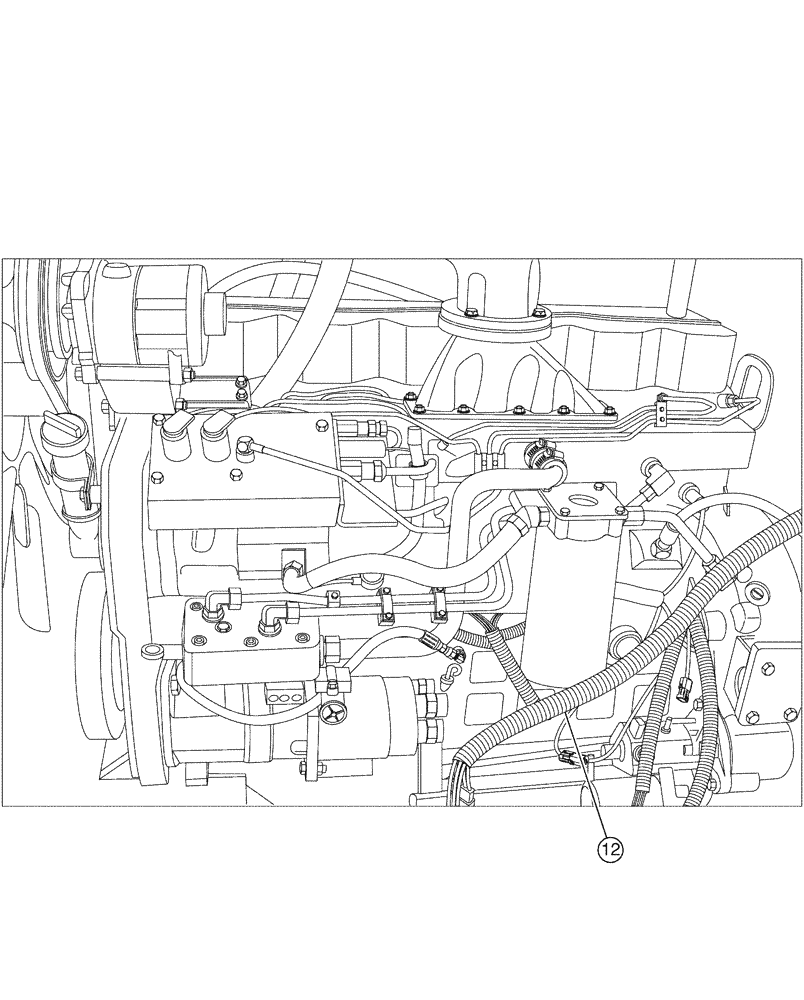

Схема запчастей Case IH FLX4375 - (08-002[01]) - ENGINE ELECTRICAL (FLX4300) (06) - ELECTRICAL
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

5

BN320001

CABLE

Positive, Battery/Battery

1шт.

6

BN320002

NEG BATTERY CABLE

/Battery

1шт.

7

BN320003

CABLE

Negative, Engine/Frame

1шт.

8

BN320000

POS BATTERY CABLE

Starter

1шт.

9

BN320011

CABLE

Negative, Battery/Starter

1шт.

10

BN324026

CABLE

Negative, Cab/Frame

1шт.

11

BN320012

CABLE

Negative, Engine/Frame

1шт.

12

BN325008

WIRE HARNESS

QSC Elect Engine

1шт.
