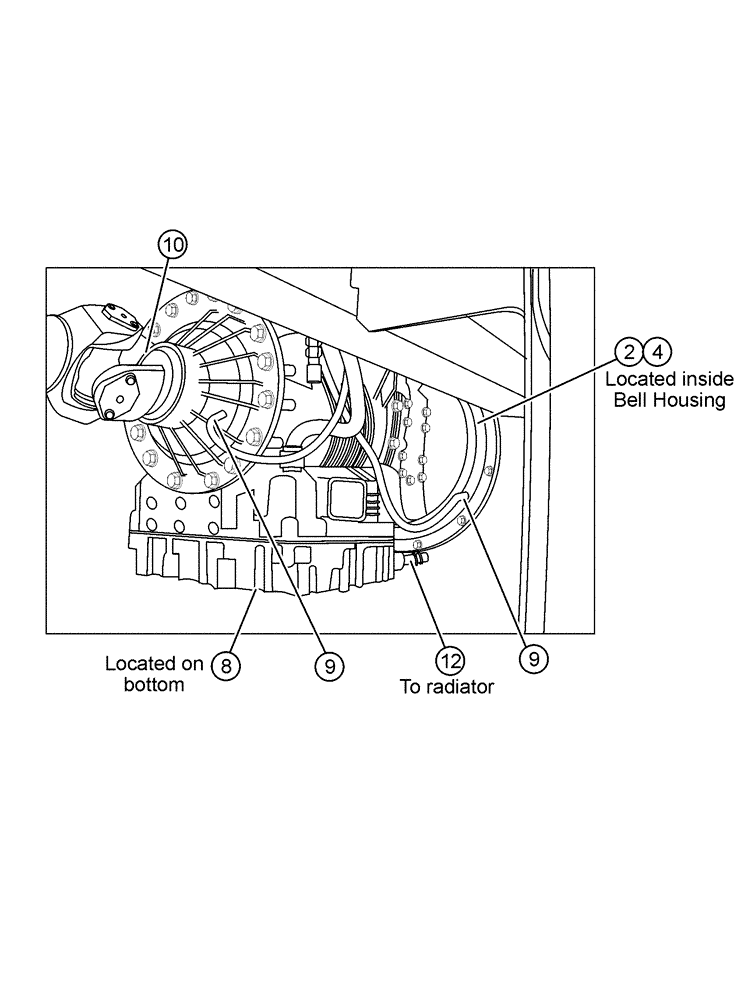

Запчасти Case IH FLX4375 (03-001[01]) - TRANSMISSION (FLX4375) (03) - TRANSMISSION

1

BN300005

TRANSMISSION

Allison, MD3066 (For A Complete Transmission)

1шт.

2

BN302976

GEAR

Ring, MD On #1 To #2 FW

1шт.

3

BN302977

ADAPTER

Ring, #1 To #2 FW

1шт.

4

BN303119

PLATE

Flex, MD3066, 3176

1шт.

5

BN312833

Selector Assembly

1шт.

See Fig. 03-007

1шт.

6

BN305692

BOX

Relay

1шт.

7

BN306282

CONTROL UNIT

Trans ECU, MD3066/3176

1шт.

8

87743577

SERVICE KIT

High Capacity Filter, Allison 295489

1шт.

9

BN306289

SENSOR

Trans In/Output

2шт.

10

BN307662

YOKE

MD Harness Support

1шт.

11

BN2402071-005

DIPSTICK

Transmission Fluid

1шт.

Not Shown

1шт.

12

BN302655

FITTING

12Mor-12Mb

3шт.

12a

BN302639

ELBOW

12Mor-12Mbx45

1шт.

Same Part Of Fitting, 12Mor-12Mb, P/N. BN302655 But Opposite Side

1шт.

12b

BN303489

HOSE

Transmission To Radiator, -12 x -12 x 73" Long

2шт.

Associated Part Of Fitting, 12Mor-12Mb, P/N BN302655

1шт.
