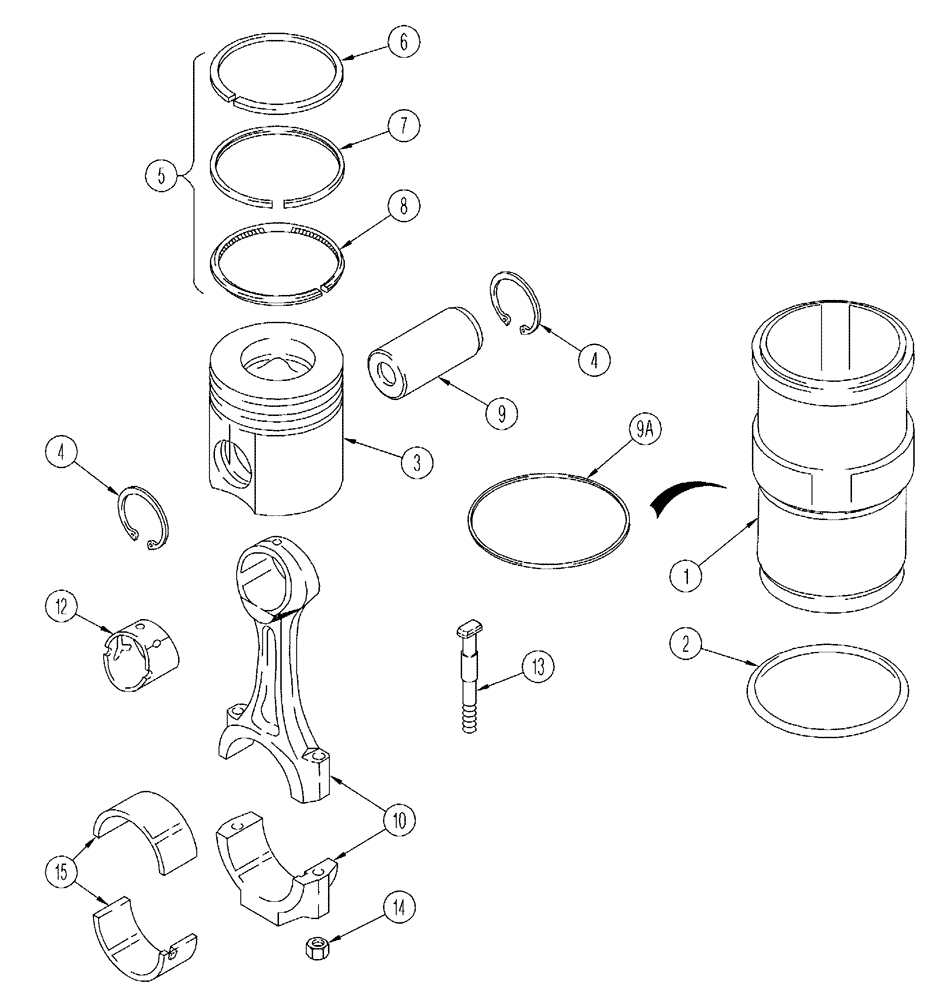

Запчасти Case IH FLX4375 (02-050) - PISTON - CONNECTING ROD (01) - ENGINE

0

A77970

PISTON & RINGS KIT

Standard

6шт.

1

J948095

SLEEVE CYLINDER,114.02mm ID x 130.95mm OD x 234.12mm L

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

Sealing

1шт.

2a

J800320

PISTON & RINGS KIT

Standard

1шт.

Contains Refs. 3 & 5

1шт.

3

NSS

NOT SOLD SEPARAT

Piston -

1шт.

4

100-21175

SNAP RING,1.75", Int, #175

2шт.

5

J802538

PISTON RINGS KIT

Standard

1шт.

6

NSS

NOT SOLD SEPARAT

Ring - Top

1шт.

7

NSS

NOT SOLD SEPARAT

Ring - Middle

1шт.

8

NSS

NOT SOLD SEPARAT

Ring - Bottom

1шт.

9

J934046

PISTON PIN,45mm OD x 91mm L

6шт.

9a

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

1шт.

9a

J924446

SHIM,126.8mm ID x 130.5mm OD x 0.38mm Thk

1шт.

9a

J924447

SHIM,126.8mm ID x 130.5mm OD x 0.5mm Thk

1шт.

9a

J924448

SHIM,0.762mm Thk

1шт.

9a

J924449

SHIM,1.000mm Thk

1шт.

9b

JR901383

REMAN-CONNECTING ROD

Remanufactured, North America Only, Component Parts Shown On This Fig. Do Not Apply To The Remanufactured Assembly

6шт.

9c

JC901383

CORE-ROD CONNECTING

CORE-CONNECTING ROD Return Number - Use This Part Number To Return Connecting Rod For Credit When Using A Remanufactured Assembly

1шт.

9d

J901383

CONNECTING ROD

6шт.

84487529R

REMAN-CONNECTING ROD

FLX4300, FLX4375 Both(9/02 - 6/03), Reman for New P/N J901383

6шт.

84487529C

CORE-ROD CONNECTING

Return Number

1шт.

10

NSS

NOT SOLD SEPARAT

Rod - Connecting

1шт.

12

J913990

BUSHING,45.03mm ID x 49mm OD x 45mm L

Connecting Rod

1шт.

13

J928870

ROD

connecting rod

2шт.

14

J934864

NUT

Hex, Rod Bolt

2шт.

15

87443389

BEARING LINER

Kit - Upper And Lower, Standard

6шт.

15

87443529

BEARING LINER

Kit - Upper And Lower, 0.25 mm Undersize

6шт.

15

A77565

BEARING SET

Kit - Connecting Rod, 0.50 mm Undersize

6шт.

15

84156221

BEARING SET

Kit - Upper and Lower, 0.75 mm Undersize

6шт.

15

87443534

BEARING LINER

Kit - Connector Rod, 1.00 mm Undersize

6шт.
