Запчасти Case IH FLX4375 (02-041) - OIL PUMP AND OIL PAN . (01) - ENGINE

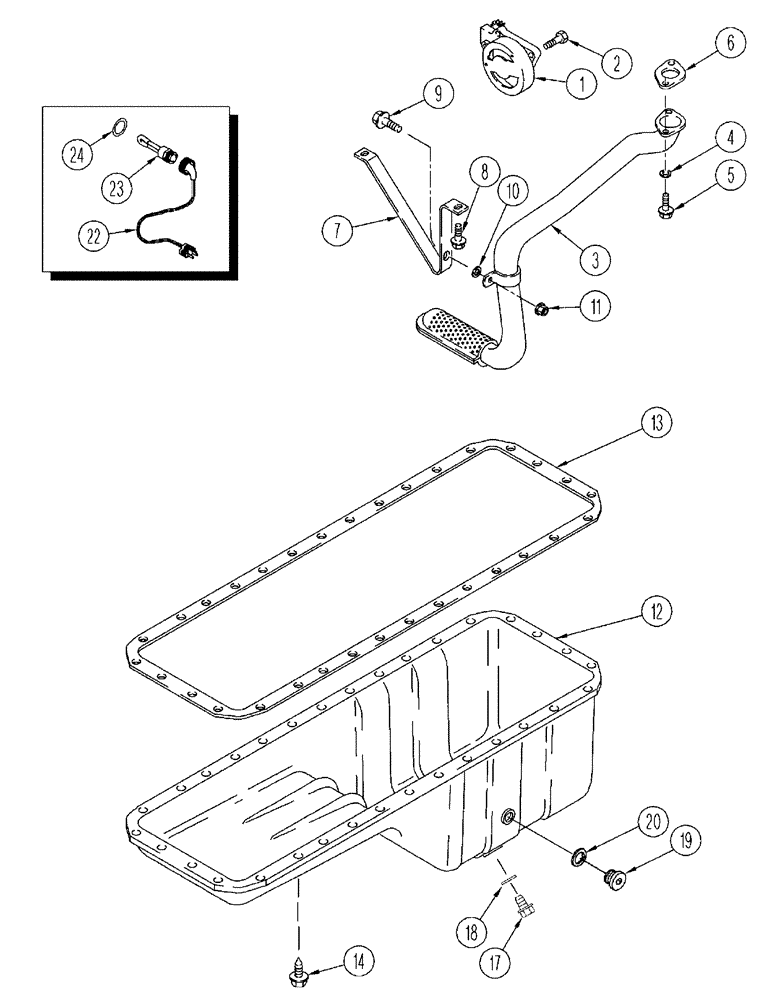

Схема запчастей Case IH FLX4375 - (02-041) - OIL PUMP AND OIL PAN . (01) - ENGINE
14
3
12
23
13
6
24
19
20
8
7
9
18
5
17
22
1
2
11
4
10

Артикул

Название

Примечание

Количество

1

J948072

ENGINE OIL PUMP

1шт.

1

JR948072

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

1

JC948072

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return Number - For N.A. only

1шт.

2

J900677

BOLT,Hex

Hex, Full Threads, 8 - 1.25 X 30 MM

4шт.

3

J910787

TUBE

With Screen, Oil Suction

1шт.

4

J926865

SPACER,6.9mm ID x 12.7mm OD x 14mm L

Mounting

2шт.

5

845-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

2шт.

6

J914302

GASKET

Mounting, Oil Suction Tube

1шт.

7

J927611

BRACKET

Brace - Suction Tube

1шт.

8

87015915

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8, Full Thd

2шт.

9

87015862

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.

10

J910960

WASHER

Flat, Special

1шт.

11

J906216

FLANGE NUT

Hex Flange, Special, 6 MM - 1.0

1шт.

12

J914013

PAN, ENGINE OIL

PAN, OIL

1шт.

13

NSS

NOT SOLD SEPARAT

Gasket - Oil Pan

1шт.

14

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

32шт.

17

J924147

PLUG,M18 x 1.5

Hex Magnetic, Special, 18 MM - 1.5

1шт.

18

J920773

SEALING WASHER

1шт.

19

J924148

PLUG,M22 x 1.5

Hex Magnetic, Special, 22 MM - 1.5

1шт.

20

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

Sealing, Plug

1шт.

20a

87308050

GASKET,0.95mm Thk

Oil Pan

1шт.

20b

A77580

SERVICE KIT

Oil Pan Heater, Engine Oil

1шт.

Also Order Ref. 24

1шт.

22

87105748

ELECTRIC CABLE,120V, 15A

1829 mm (72") (Engine Block Heater, 120 Volt)

1шт.

23

NSS

NOT SOLD SEPARAT

Element - Heater, 120 Volt (Engine Oil Heater, 120 V)

1шт.

24

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

Sealing, Plug (Engine Oil Heater, 120 V)

1шт.

24a

A77666

SERVICE KIT

Heater, Engine Oil, 240 Volt

1шт.

Also Order Ref. 24

1шт.

22

J905114

ELECTRIC CABLE

Engine Block Heater, 6 Foot (Engine Oil Heater, 240 V)

1шт.

23

NSS

NOT SOLD SEPARAT

Element - Heater, 240 Volt (Engine Oil Heater, 240 V)

1шт.

24

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

Sealing, Plug (Engine Oil Heater, 120 V)

1шт.

Выбрано товаров: 31
