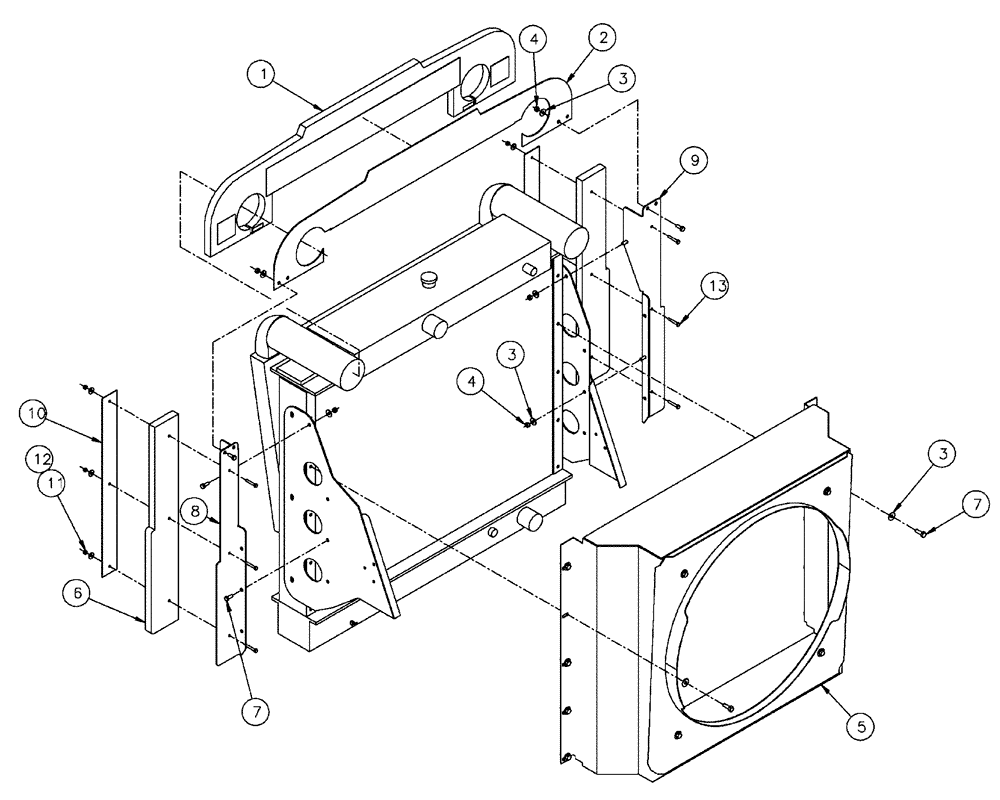

Запчасти Case IH FLX4375 (02-027) - SHROUD COMPONENTS GROUP (FLX4300) (01) - ENGINE

1

BN315717

FOAM

Baffle, Top, Foam, 4-Wheel

1шт.

2

BN313558

BAFFLE

Radiator, Top

1шт.

3

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

20шт.

4

86528579

NUT,M8 x 1.25

12шт.

5

Group, Fan Shroud

1шт.

6

BN315718

BAFFLE

Side, Foam, 4-Whl

2шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

20шт.

8

BN313560

Baffle, Radiator, Cs

1шт.

9

BN313559

Baffle, Radiator, Rs

1шт.

10

BN317035

PLATE

Foam Backing

2шт.

11

BN300488

WASHER

M6, Flat, 8.8

6шт.

12

353308

NUT,M6 x 1.0, Cl 8

6шт.

13

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

6шт.
