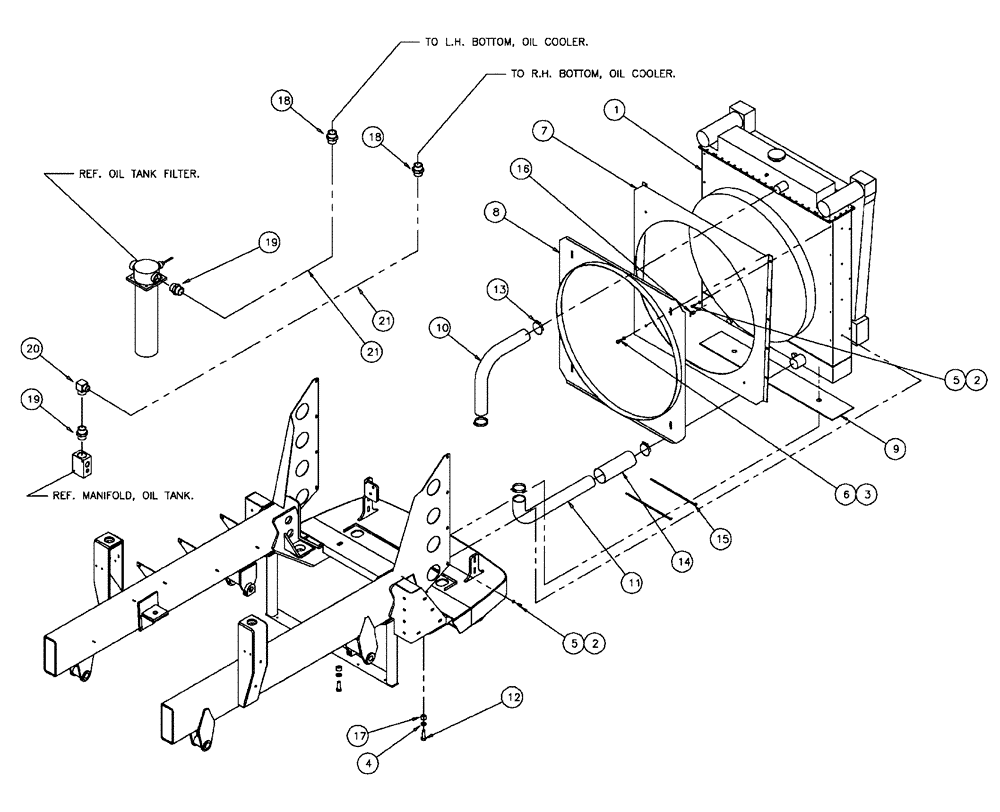

Запчасти Case IH FLX4375 (02-025) - RADIATOR GROUP (FLX4375) (01) - ENGINE

1

BN300027

RADIATOR

Radiator Assembly, 40 X 45, 4 Coolers

1шт.

1a

BN300011

ANGLE

Chan. Mount, Oil Cooler

1шт.

Service Parts For Ref. 1

1шт.

1b

BN300013

TANK

Top, Assy

1шт.

Service Parts For Ref. 1

1шт.

1c

BN300029

RADIATOR

Water, 40 x 45

1шт.

Service Parts For Ref. 1

1шт.

1d

BN300030

RADIATOR

Bottom Tank, 40 x 45

1шт.

Service Parts For Ref. 1

1шт.

1e

BN300031

COOLER ASSY.

CAC Cooler, 40 X 45 Radiator

1шт.

Service Parts For Ref. 1

1шт.

1f

BN305644

OIL COOLER

Radiator, Oil 30 X 38, -20 MB

1шт.

Service Parts For Ref. 1

1шт.

1g

BN306028

RADIATOR CAP

Cap, Radiator 15# SAE MED.

1шт.

Service Parts For Ref. 1

1шт.

1

BN300028

RADIATOR

Assy 40 X 45 3 Coolers

1шт.

Parts Of Fitting, 1/4 X 1/8 FG-S., P/N BN2293138

1шт.

1h

BN300013

TANK

Top, Assy

1шт.

Service Parts For Ref. 1

1шт.

1j

BN300029

RADIATOR

Water, 40 x 45

1шт.

Service Parts For Ref. 1

1шт.

1k

BN300030

RADIATOR

Bottom Tank, 40 x 45

1шт.

Service Parts For Ref. 1

1шт.

1l

BN300031

COOLER ASSY.

CAC Cooler, 40 X 45 Rad

1шт.

Service Parts For Ref. 1

1шт.

1m

BN306028

RADIATOR CAP

Cap, Radiator 15# Sae Med

1шт.

Service Parts For Ref. 1

1шт.

2

BN300497

WASHER,M8, 10.9

18шт.

3

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

4

BN300501

WASHER

M16, FW, 10.9

2шт.

5

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

18шт.

6

BN50145

WASHER

3/8, FW, G5

4шт.

7

BN302188

BOX

Fan Shroud, 38"

1шт.

8

BN302192

FAN

Fan Shroud, 38"

1шт.

9

BN302276

RADIATOR

Pad, 7 X 43

1шт.

10

BN302306

HOSE,2.50" ID x 14.50", SAE 20R4

Upper

1шт.

11

BN302307

HOSE,2.50" ID x 23.25", SAE 20R4

Lower

1шт.

12

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

2шт.

13

BN51098

HOSE CLAMP

#48

4шт.

14

BN305347

SLEEVE

Hose, 10" X 3.5 ID

1шт.

15

BN570007

STRAP

Black Only .12-4.0 Band

2шт.

16

BN68738

HYDRAULIC VALVE

Radiator Drain W/90

1шт.

17

BN2297363

MOUNTING PLATE

Isolator 200106R1

2шт.

18

BN302660

FITTING

20Mor-20Mb

2шт.

19

BN305539

FITTING

20Fb-24Mb

2шт.

20

BN302577

ELBOW

20Mor-20Mbx90

1шт.

21

BN305540

HOSE

20-100R1At-20Forx-20Forx-

2шт.
